TOOLTOP ET2010A 2 in 1 True RMS Handheld Oscilloscope + Multimeter

Tooltop ET2010A 2-in-1 Digital Display 2.5MHz Data Storage Oscilloscope 600V True RMS Multimeter

Features：

• 2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000 count digital multimeter.

• One-click visual wave, there are three waveform scanning modes: Automatic/Conventional/Single

• Save function for data and waveform in the measurement; A total of 100 sets of data and 10 waveforms can be saved

• When measuring waveforms, you can set parameters independently, such as time base, amplitude, waveform scanning mode, etc

• REL, effectively eliminates the lead resistance, distributed capacitance, and interference signal

• Multimeter functions include DC/AC voltage/current, resistance, capacitance, frequency, duty cycle, diode continuity test

• Automatic/manual switching for measuring range and display of measurement data and historical data on the same screen

• Overload protection 10A double protective tube, dual protection of the instrument

• Automatic shutdown in case of no operations for 15 minutes: bright backlight and clear display

• Adopt a 2.4-inch color screen display, the display effect is clear

• Higher reliability: No adjustment of the potentiometer is required for panel calibration and internal storage calibration

Specification:

• Display: 240x320 Color screen

• Backlight: Constantly on

• Battery: AA batteries *3 (Not included)

• Working current: About 65mA

• usage time: More than 10 hours

• Use: 0°C~40°C; <75%RH

• Dimensions: 77*157*25.5mm

• Observation area: 49.0*36.7 mm

• Input resistance: About 10MΩ

• Auto shutdown: 15 minutes or disabled

• Sleep current: About 35uA

• Storage capacity: 100*data, 10*waveform

• Storage: -10°C~60°C; <90%RH

• Weight: About 135g

Oscilloscope:

• Analog bandwidth: 1MHZ

• Channel: 1

• Scan mode: Auto/normal/single

• Vertical sensitivity range: 300mV~100V per grid

• Vertical amplitude accuracy: ±(5%+0.2div)

• Auto-configuration: Auto set time base and vertical amplitude

• Max real-time sampling rate: 2.5Msps

• Input resistance: About 10MΩ

• Time base range: 2.5us~10s per grid

• Time base accuracy: ±(0.01%+0.1div)

• Trigger edge selection: Rising/falling edge

• Automatic measurement function: Vp-p, Vavg, Vrms, HZ

Multimeter:

• DC Voltage: 400mV~600V

• DC Current: 4A~10A

• Resistance: 400.0Ω~40.00MΩ

• Frequency: 5Hz~5MHz

• Diode test: Voltage is about 1.5V

• AC Voltage: 400mV~600V

• AC Current: 4A~10A

• Capacitance: 51.2nF~100uF

• Duty cycle: 0%~100%

• Continuity test: Resistance <50Ω, beep

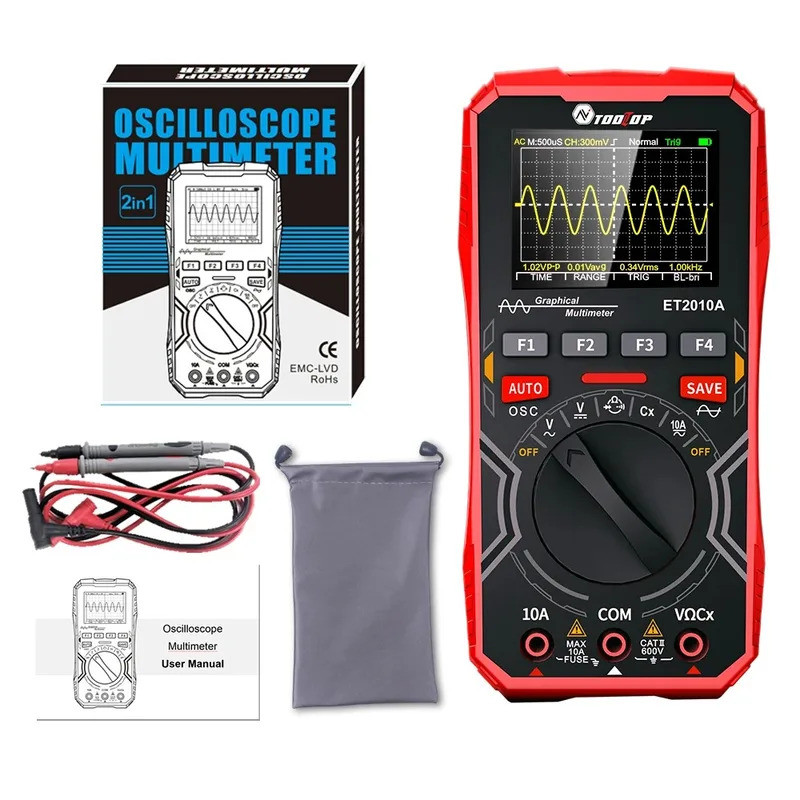

Package includes:

• 1 x Oscilloscope Multimeter(Random Color)

• 1 x Test Leads
