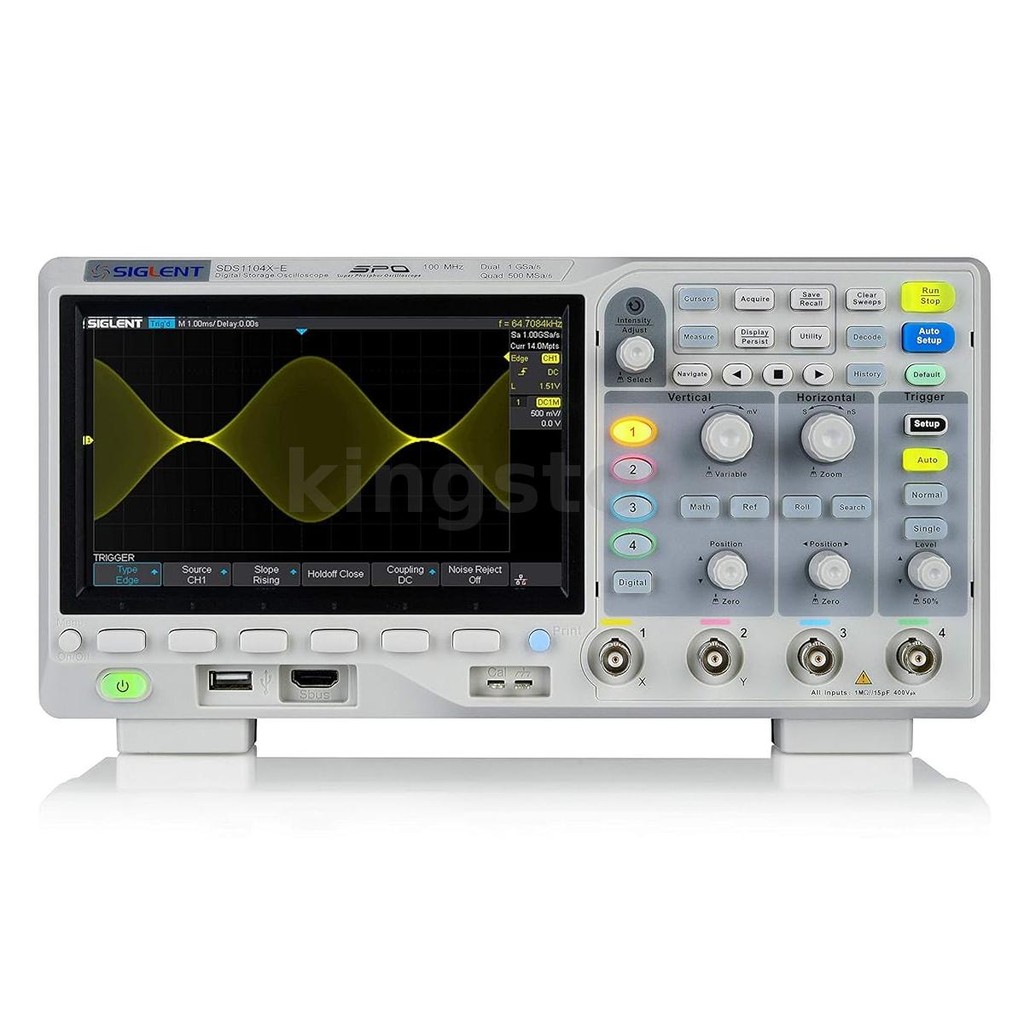

SIGLENT SDS1104X-E (100 MHz) Digital Oscilloscope

Details

Features:

• 100 MHz bandwidth / 4 channels
• Compatible with several options not available for the 2 channel model (SDS1202X-E) - mixed signal analysis, arbitrary waveform generator software, WiFi control, USB Isolated AWG Module
• Real-time sampling rate up to 1 GSa/s
• Record length up to 14 Mpts, 1 Mpt FFT
• Free Serial bus triggering and decoding: IIC, SPI, UART, RS232, CAN and LIN
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Large 7-inch TFT-LCD display with 800 x 480 resolution
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern
• Low background noise with voltage scales from 500 μV/div to

SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).

The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 Mpt FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of SIGLENT’s new SDS1000X-E cannot be matched anywhere else in this price class.
