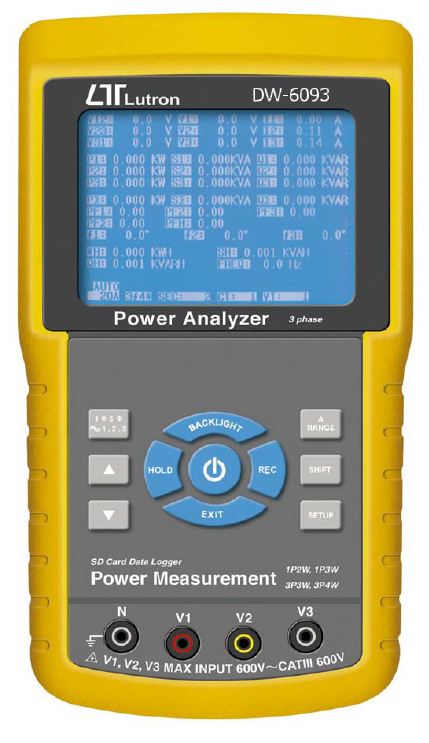

LUTRON DW-6093 Phase Power Analyzer

Features

• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
• Voltage & Current are the True RMS value.
• True Power ( KW、MW、GW ) measurement.
• Apparent Power ( KVA、MVA、GVA ) measurement.
• Reactive Power ( KVAR MVAR、GVAR) measurement.
• Watt-Hour ( WH、SH、QH、PFH ). | Power Factor( PF )、Phase Angle( Φ ).
• Voltage measurement range : 10 to 600 ACV
• Current probe input current range ( ACA ) : 60 A/600 A/6000 A (with CP-6001 Flexible Current Probe).
• Meter can cooperate the universal current probe.
• Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
• ACV input impedance is 10 Mega ohms..
• Safety Standard : IEC 1010, CAT III 600V
• Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/data/ hour/minute/second ) to the Excel directly, then user can make the further data analysis by themselves.
• Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Flexible Clamp Probe ( CP-6001 ), AC to DC 9V adapter, 2 G SD memory card and Carrying bag.
• Computer data output, can cooperate with USB Cable /USB-01 RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN. (These accessories are optional, NOT INCLUDED in the standard package.)
