VICTOR 14+ Temperature Calibrator with Measure and Source function

Project

The peference model
Performance
parameters

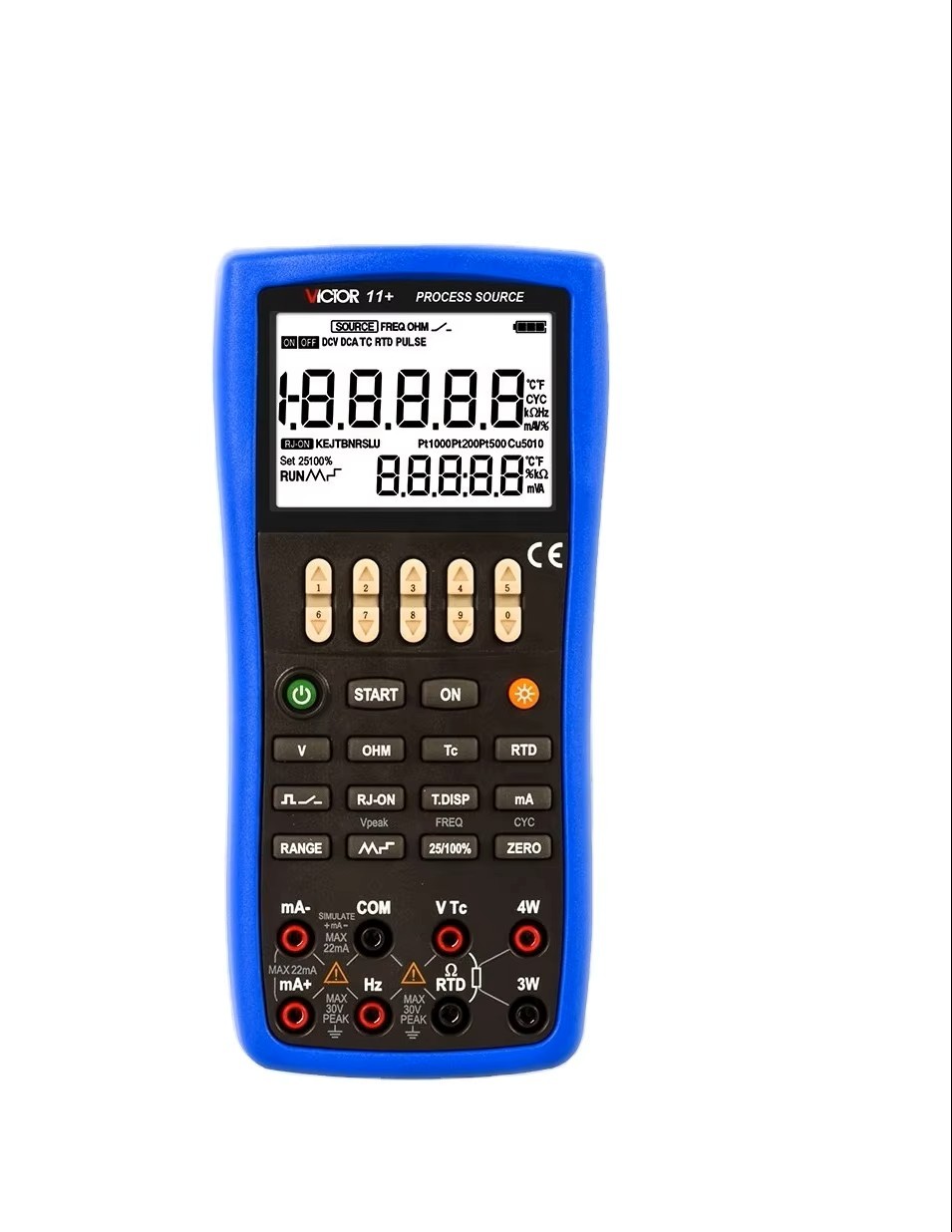

VICTOR 11+

VICTOR 14+

VICTOR 15+

Source

DC millivolt

Range

-10 ～ 1100mV

-10.000～100.000mV

-10 ～ 1100mV

Accuracy=
±(% of the set value+% of range)

0.02%+0.01%

0.02%+0.01%

0.02%+0.01%

Resolution

1uV

1uV

0.01mV

DC voltage

Range

-1 ～ 11V

-0.1 ～ 1V

-1 ～ 11V

Accuracy=
±(% of the set value+% of range)

0.02%+0.01%

0.02%+0.01%

0.02%+0.01%

Resolution

0.1mV

10uV

0.1mV

DC current

Range

0 ～ 22mA

N/A

0 ～ 22mA

Accuracy=
±(% of the set value+% of range)

0.02%+0.02%

0.02%+0.02%

Resolution

1uA

1uA

Sink current

Range

0 ～ 22mA

N/A

0 ～ 22mA

Accuracy
±(% of the set value+% of range)

0.02%+0.02%

0.02%+0.02%

Resolution

1uA

1uA

External power supply

5 ～ 28V

5 ～ 28V

Resistance

Range

0 ～ 40KΩ

0 ～ 4KΩ

N/A

Accuracy=
±(% of the set value+% of range)

0.02%+0.02%

0.02%+0.02%

Resolution

0.01Ω/0.1Ω/1Ω

0.01Ω/0.1Ω

Frequency

Range

1Hz ～100KHz

N/A

1Hz ～10KHz

Accuracy

±2words

±2words

Resolution

0.01Hz/1Hz/0.1KHz/2KHz

0.01Hz/1Hz/0.1KHz/2KHz

Pulse

Frequency

1Hz ～10KHz

N/A

1Hz ～10KHz

Range

1 ～100000cyc

1 ～100000cyc

Accuracy

±2words

±2words

Resolution

1cyc

1cyc

Switch

Range

1Hz ～100KHz

N/A

N/A

Accuracy

±2words

Resolution

0.01Hz/1Hz/0.1KHz/2KHz

Thermocouple

Range

10types(R/S/K/E/J/T/B/N/L/U)

10types(R/S/K/E/J/T/B/N/L/U)

N/A

Accuracy

0.4℃

0.4℃

Resolution

0.1℃/1℃

0.1℃/1℃

RTD

Range

6types(Pt100/Pt200/Pt500/
Pt1000/Cu10/Cu50)

6types(Pt100/Pt200/Pt500/
Pt1000/Cu10/Cu50)

N/A

Accuracy

0.2℃

0.2℃

Resolution

0.1℃

0.1℃

Measure

DC millivolt

Range

N/A

-5 ～ 550mV

-20 ～ 220mV

Accuracy=
±( % of Reading+ % of Range)

0.02%+0.01%

0.02%+0.02%

Resolution

1uV/10uV

0.01mV

DC voltage

Range

N/A

N/A

-5 ～ 55V

Accuracy=
±( % of Reading+ % of Range)

0.02%+0.01%

Resolution

0.1mV/1mV

DC current

Range

N/A

N/A

-4 ～ 55mA

Accuracy=
±( % of Reading+ % of Range)

0.02%+0.01%

Resolution

1uA

Resistance

Range

N/A

0 ～ 5.5KΩ

N/A

Accuracy=
±( % of Reading+ % of Range)

0.05%+0.02%

Resolution

0.01Ω/0.1Ω

Frequency

Range

N/A

N/A

3 ～50KHz

Accuracy

±2words

Resolution

0.01Hz/0.1Hz/1Hz

Switch

Range

N/A

N/A

CLOSE/OPEN

Threshold

200 ～300Ω

Pressure

Range

N/A

N/A

Depends on the pressure module

Accuracy=
±( % of Reading+ % of Range)

Depends on the pressure module

Resolution

5 digit display

Loop power supply

Range

N/A

N/A

24V

Accuracy

±10%

The maximum current

22mA

Thermocouple

Range

N/A

10types(R/S/K/E/J/T/B/N/L/U)

N/A

Accuracy

0.7℃

Resolution

0.1℃/1℃

RTD

Range

N/A

6types(Pt100/Pt200/Pt500/
Pt1000/Cu10/Cu50)

N/A

Accuracy

0.5℃

Resolution

0.1℃

Continuity beeper

Range

N/A

0 ～500Ω

Accuracy

≤50Ω Sound

≤250Ω Sound

Resolution

0.01Ω

Other functions

Backlight

√

√

√

Auto Power-off

√

√

√

Charging function

√

√

√

Room temperature display

√

√

√

Battery detection

√

√

√

Communication function

RS232 serial communication, can realize remote control instrument by the device driver software

The mathematical treatment

Data hold,zero,average

Data hold,zero,average

Data hold,zero,average

Characteristic

Safety

EN61010-1:2001

EN61010-1:2001

EN61010-1:2001

Insulation

DC500V /50MΩ

DC500V /50MΩ

DC500V /50MΩ

EMC

EN61326-1:2006

EN61326-1:2006

EN61326-1:2006

Authentication

CE

CE

CE

Display

Double display on the LCD screen

Double display on the LCD screen

Double display on the LCD screen

Power supply

4×1.5V AAA alkaline battery

4×1.5V AAA Alkaline battery

4×1.5V AAA Alkaline battery

Size

205 × 95 × 42 mm

205 × 95 × 42 mm

205 × 95 × 42 mm

Weight

About 500g

About 500g

About 500g
