Ccd Camera Microscope HD 10M-219-8 Display 8"

                                             ข้อมูลสินค้า

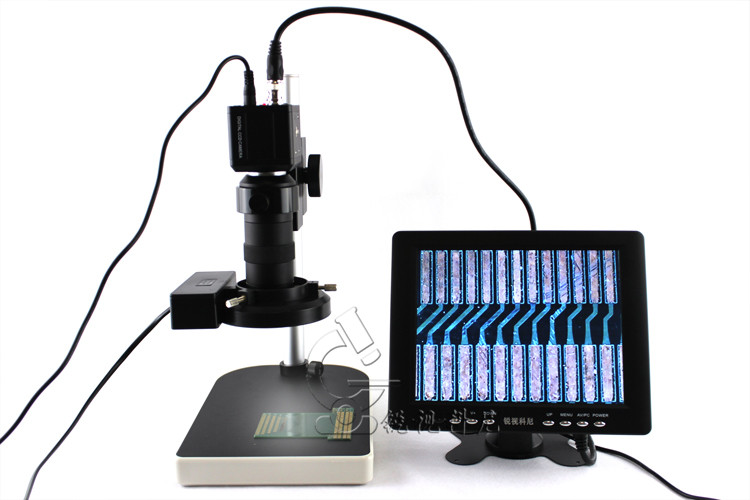

-Industrial Video Microscope

Model: 10M-219-8

Lens Description:

1. Optical magnification 0.12 times -2 times (about 8 times

-130 times in a 21 inch display)

2. Operating distance：

Maximum Range Lens to working distance is 160mm,

Visible Range is 14mm.

Minimum Range Lens to working distance is 45mm,

Visible Range is 3mm.

Auxiliary Light Source：LED

1. Annular LED microscope lighting lamp with high brightness,

low temperature，light and soft no stroboscopic, long service life,

energy saving, compact appearance, convenient for installation

2. The brightness of the light of the annular LED microscope

can be adjusted, and the utility model is an ideal light source for

optical instruments such as a portable microscope and a single

cylinder video microscope

Operation:

Manual lens can be adjustment multiple，Distance can be ajust by lifting

bracket，distance from the lens focal length is low magnification items

transferred more items from the higher the camera lens instead of multiple

should be small, so that we can clearly see the image
