SIGLENT SDS1202CFL Digital Ossilloscope
| รหัสสินค้า | 00225 |
| หมวดหมู่ | Digital Ossilloscope |
| ราคา | 15,842.00 บาท |
| น้ำหนัก | 2,800 กรัม |
| ยี่ห้อ | SIGLENT |
| รุ่น | SDS1202CFL |
| สถานะสินค้า | Pre-Order |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 8 ธ.ค. 2559 |
| อัพเดทล่าสุด | 2 ก.ค. 2567 |
| คงเหลือ | 0 ea |
เลิกจำหน่าย
รายละเอียดสินค้า

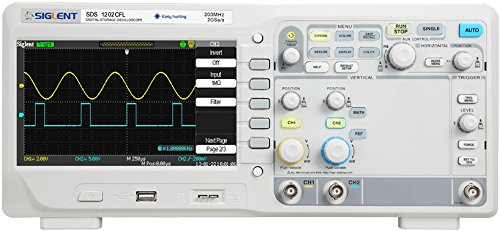

Siglent SDS1202CFL 200 MHz 2 Channel Digital Storage Oscilloscope
Product Overview
Siglent’s SDS1000CFL family of scopes offer faster sampling rates and higher bandwidths than other
Siglent SDS1000 families of scopes. The CFL’s provide up to four channels with an external trigger input
channel and bandwidths up to 300 MHz. With a set of separate vertical controls for each input channel,
you don’t need to worry about accidentally modifying the wrong trace. No more switching between
channels as found in some other 2 and 4 channel oscilloscopes. Powerful triggering and analysis
capabilities make it easy to capture and analyze waveforms, greatly improving the test efficiency.
Key Features of the SDS1202CFL 200 MHz 2 Channel Digital Storage Oscilloscope
- 7” Color TFT LCD display
- 2 channels
- 200MHz Bandwidth
- Single channel real-time sampling rate is: 2 GSa/s, Equivalent sampling rate is 50 GSa/s
- Memory depth: 24 Kpts
- Trigger types: Edge, Pulse, Video, Slope and Alternative
- Powerful Digital Filter function and Waveform recorder function
- Auto measurement of thirty two parameters
- 2 groups’ reference waveforms. 20 groups of captured waveforms and 20 groups of setups. Internal save/recall function and USB flash drive save/recall function.
- Cursor types: Manual mode, Track mode and Auto mode
- Channel waveform and its FFT waveform display on split screen or full screen
- Four Screen display styles: Classical, Modern, Tradition, Succinct
- Multiple Language User Interface
- Supports built-in online help system
- Standard interfaces: Dual USB Host; USB Device; LAN Port; Pass/Fail Out
Specifications:
|
|
| Input Coupling | AC, DC, GND |
| Input Impedance | 1MΩ±2% || 18Pf±3Pf |
| Maximum input voltage | 400V (DC+AC PK-PK, 1MΩ input impedance, X10), CAT I |
| Ch to Ch Isolation (Both channels in same V/div setting) | >100:1 at 100MHz |
| Probe attenuator | 1X,10X |
| Probe attenuator Factors Set | 1X,5X,10X,50X,100X ,500X,1000X |
|
|
| Vertical Sensitivity | 2mV/div -5V/div(1-2-5 order) |
| 2mV/div -5V/div(1-2-5 order) | 2mV-100mV: ±800mV 102mV-5V: ±40V |
| Vertical Resolution | 8 bit |
| Channels | 2 |
| Analog Bandwidth | 200MHz |
| Single-shot Bandwidth | 200MHz |
| BW Flatness at BNC input | DC -10% of rated BW: +/- 1dB 10% - 50% of rated BW: +/- 2dB 50% - 100% of rated BW: + 2dB/-3dB |
| Lower frequency limit (AC -3dB) | ≤10Hz(at input BNC) |
| Noise: Pk-Pk for 3K record | ≤0.6 Div for average of 10 Pk-Pk readings, Fixed gain settings ≤0.7 Div for average of 10 Pk-Pk readings, Variable gain settings |
| SFDR including harmonics (measured with FFT) | >=35dB |
| DC Gain Accuracy | <±3.0%: 5mv/div to 5V/div in Fixed Gain Ranges <±4.0%: 2mv/div Variable Gain Ranges |
| DC Measurement Accuracy: All Gain settings≤100mv/div | ±[3%* ? |reading|+|offset| ? +1% *of |offset| +0.2div+2mv] |
| DC Measurement Accuracy: All Gain settings ? 100mv/div | ±[3%* ? |reading|+|offset| ? +1%* of |offset| +0.2div+100mv] |
| Rise time | <1.8ns |
| Overshoot, Typical (using 500ps pulse) | <10% with probe or BNC input w/ 50 Ohm feed thru |
| Ch to Ch Skew (both channels in same V/div setting) | <1ns (Equivalent to 2 minor divisions in smallest t/div) |
| Math operation | +, -, *, /, FFT |
| FFT | Window mode: Hanning, Hamming, Blackman, Rectangular |
| Sampling points: 1024 | |
| Bandwidth limited | 20MHz ±40% (Note: BW limited below 20MHz when using probe in x1) |
|
|
| Real Time Sampling Rate | Single Channel: 2GSa/s, Double Channels: 1GSa/s (When timebase faster than 25ns/div) |
| Equivalent Sampling Rate | The highest equivalent sampling rate of other Models is 50GSa/s |
| Measure Display Modes | MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y |
| Timebase Accuracy | ±100ppm measured over 1ms interval |
| Horizontal Scan Range | 1.0nS/DIV - 50S/DIV |
| Scan: 100mS/DIV ?50S/DIV (1-2.5-5 sequence) | |
|
|
| Trigger Types | Edge, Pulse Width, Video,Slope, Alternative |
| Trigger Source | CH1,CH2,CH3,CH4,EXT,EXT/5,AC Line |
| Trigger Modes | Auto, Normal, Single |
| Trigger Coupling | AC, DC, LF rej, HF rej |
| Trigger Level Range | CH1,CH2,CH3,CH4: ±6divisions from center of screen |
| EXT: ±1.2V | |
| EXT/5: ±6V | |
| Trigger Displacement | Pre-trigger：（Memory depth/（2*sampling））, Delay Trigger: 260DIV |
| Trigger Level Accuracy (typical) applicable for the signal of rising and falling time ≥20ns | Internal： ±(0.2 div×V/div)( within±4 divisions from center of screen) EXT： ±(6% of setting + 40 mV) EXT/5： ±(6% of setting + 200 mV) |
| Trigger Sensitivity | For fixed gain ranges 1 Divisions: DC-10MHz 1.5 Divisions: 10MHz - Max BW |
| EXT: 200mVpp DC-10MHz, 300mVpp 10MHz - Max BW | |
| EXT/5: 1Vpp DC-10MHz, 1.5Vpp 10MHz - Max BW | |
| Pulse Width Trigger | Trigger Modes: (＞,＜, ＝)positive Pulse Width, (＞, ＜, ＝)Negative Pulse Width |
| Pulse Width Range: 20ns – 10s | |
| Video Trigger | Support signal Formats: PAL/SECAM, NTSC |
| Trigger condition : odd field, even field, all lines, line Num | |
| Slope Trigger | (＞,＜, ＝) Positive slope, (＞,＜, ＝) Negative slope |
| Time: 20ns-10s | |
| Alternative Trigger | CH1 trigger type: Edge, Pulse, Video, Slope |
| CH2 trigger type: Edge, Pulse, Video, Slope | |
|
|
| X-pole Input / Y-Pole Input | (CH1) / (CH2) or (CH3)/(CH4) |
| Sample Frequency | XY mode has a breakthrough that trad oscilloscopes restrict sampling rate at 1MSa/s. Support 25Ksa/s～ 250Msa/s adjusted. |
|
|
| Reading resolution | 1 Hz |
| Accuracy | ±0.01% |
| Range | DC Couple, 10Hz to MAX Bandwidth |
| Signal Types | Satisfying all Trigger signals(Except Pulse width trigger and Video Trigger) |
|
|
| Auto Set | Auto adjusting the Vertical, Horizontal system and Trigger Position |
| Save/Recall | Support 2 Group referenced Waveforms, 20 Group setups,20 Group captured Waveforms internal Storage/Recall function and USB flash driver storage function. |
|
|
| Auto Measure (32 Types) | Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean,Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period,+ Wid,－Wid, ＋Dut, －Dut, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
| Cursor Measure | Manual mode, Track mode and Auto mode |
|
|
| Display Mode | Color TFT 7.0in.(177.8mm)diagonal Liquid Crystal Display |
| Resolution | 480 horizontal by 234 vertical pixels |
| Display Color | 64K color |
| Display Contrast （Typical state） | 150:1 |
| Backlight Intensity（Typical state） | 300nit |
| Wave display range | 8 x 18 div |
| Wave Display Mode | Dots, Vector |
| Persist | Off, 1 sec, 2 sec, 5 sec, Infinite |
| Menu Display | 2 sec, 5 sec, 10 sec, 20 sec, Infinite |
| Screen-Saver | Off,1min,2min,5min,10min,15min,30 min,1hour,2hour,5hour |
| Skin | Classical, Modern, Tradition, Succinct |
| waveform interpolation | Sin(x)/x，Linear |
| Color model | Normal , Invert |
| Language | English, Simplified Chinese, Traditional Chinese, Arabic, French, German, Russian, Portuguese Spanish, Japanese, Korean,Italian |
|
|
| Temperature | Operating:10℃ to +40℃ Not operating: -20℃ to +60℃ |
| Cooling | The fan forces it cold. |
| Humidity | Operating: 85%RH, 40℃, 24 hours Not operating: 85%RH, 65℃, 24 hours |
| Height | Operating: 3000m Not operating: 15,266m |
|
|
| Input Voltage | 100-240 VAC, CAT II, Auto selection |
| Frequency Scope | 45Hz to 440Hz |
| Power | 50VA Max |
|
|
| Dimension | length: 358mm Width: 156mm Height: 118mm |
| weight | 4.3kg |
Tech Specs
Channels: 2
Sampling Rate: 2GSa/s
Memory: <50k
Rise Time: 1.8ns
Screen Type: LCD
Portable: Tabletop
Bandwidth: 200MHz
Exact Bandwidth: 200MHz
Exact Sampling Rate: 2GSa/s
