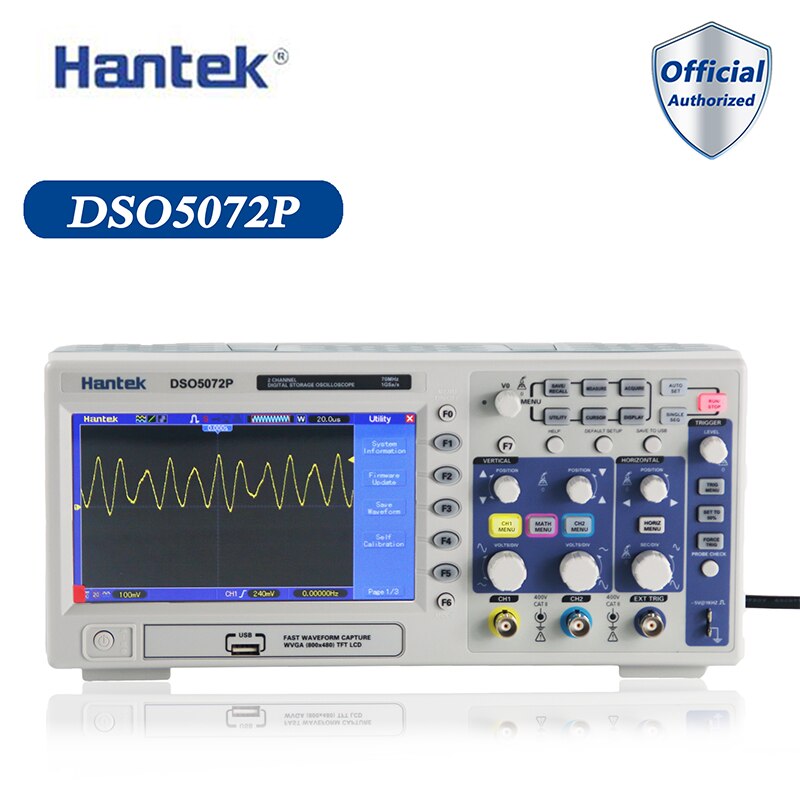

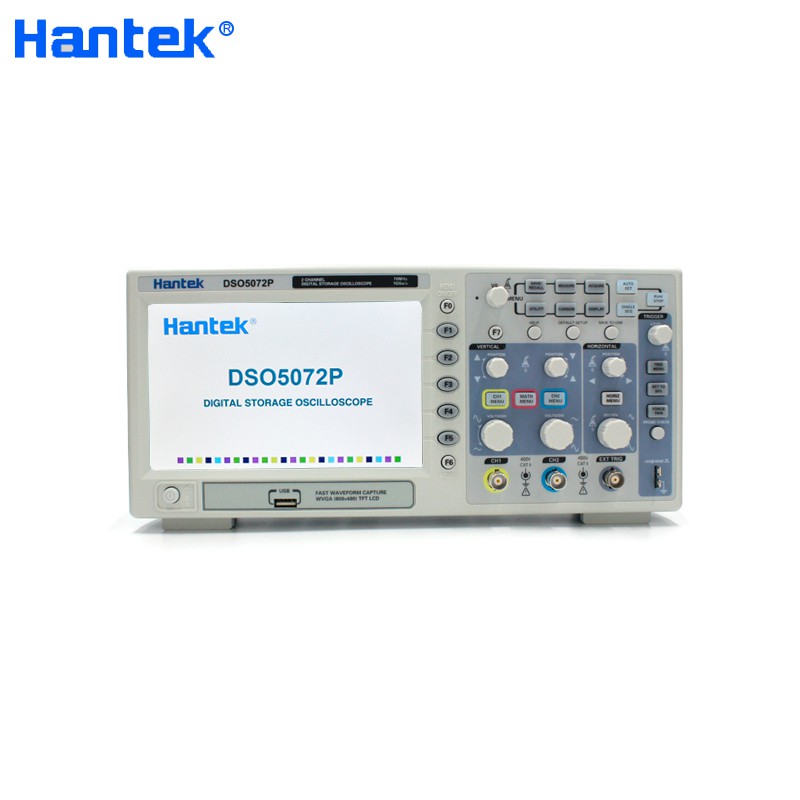

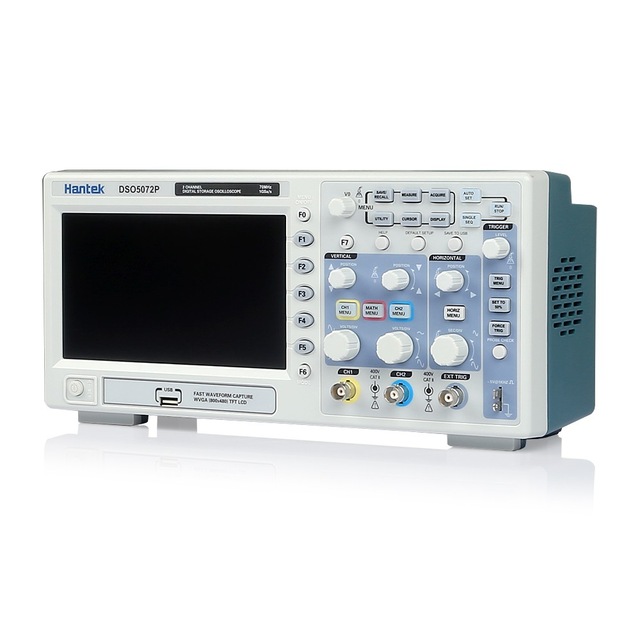

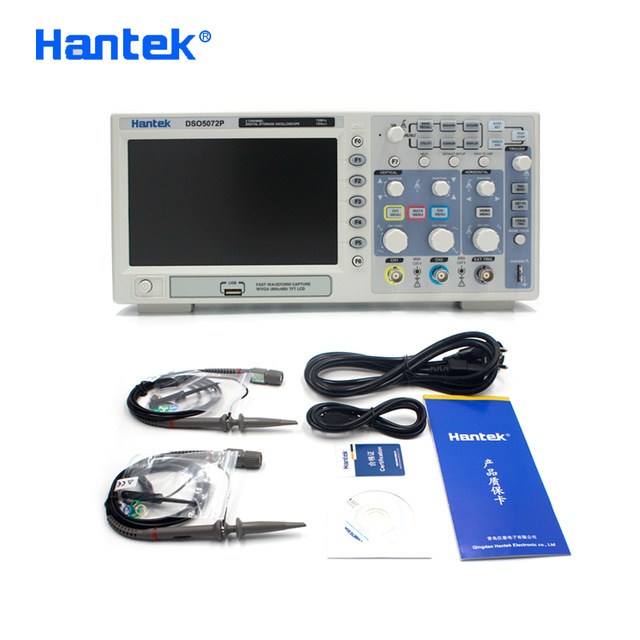

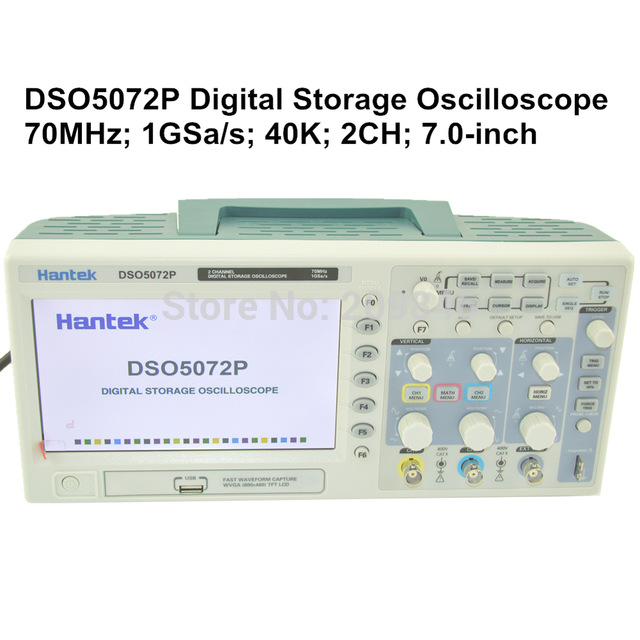

Hantek DSO5072p 70Mhz Digital Ossilloscope







70MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display, WVGA(800x480)
Record length up to 40( Kbytes )

Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
VGA Optional







Model	DSO5072P
Acquisition
Sample Rate	Real-Time Sample: 1GS/s
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impendance	1MΩ±2% //20pF±3pF
Horizontal System
Sample Rate Range	500MS/s--1GS/s
Waveform Interpolation	(sin x)/x
Record Length	40( Kbytes )
SEC/DIV Range	4ns/div to 40s/div
Sample Rate and Delay Time Accuracy	±50ppm(at over any ≥1ms time interval)
Position Range	20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s
△ Time Measurement Accuracy  (Full Bandwidth)	Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Position Range	2mV/div to 10V/div
Bandwidth	70MHz
Rise Time at BNC( typical)	5ns
Bandwidth Limit	20MHz
Low Frequency Response (-3db)	≤10Hz at BNC
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Trigger System
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2, EXT, EXT/5, AC Line
Trigger Modes	Auto, Normal, Single
Coupling Type	DC, AC, Noise Reject, HF Reject, LF Reject
Trigger Sensitivity (Edge Trigger Type)	DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT):  200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5):        1V from DC to 100MHz;1.75V from 100MHz to 200MHz;        AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz  LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz
Trigger Level Range	CH1/CH2: ±8 divisions from center of screen;  EXT: ±1.2V; EXT/5:±6V
Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns	CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV);
Set Level to 50%(typical)	Operates with input signals ≥50Hz
Video Trigger
Video Trigger Type	CH1, CH2: Peak-to-peak amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V
Signal Formats and Field Rates, Video Trigger Type	Supports NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range	100ns ~ 10s
Trigger Frequency Counter
Readout Resolution	6 digits
Accuracy (typical)	±30ppm (including all frequency reference errors and ±1 count errors)
Frequency Range	AC coupled, from 4Hz minimum to rated bandwidth
Display
Display Type	7 inch 64K color TFT (diagonal liquid crystal)
Display Resolution	800 horizontal by 480 vertical pixels
Display Contrast	Adjustable (16 gears) with the progress bar
Probe Compensator Output
Output Voltage( typical)	About 5Vpp into ≥1MΩ load
Frequency(typical)	1kHz
Power Supply
Supply Voltage	100-120VACRMS(±10%), 45Hz to 440Hz, CAT II 120-240VACRMS(±10%), 45Hz to 66Hz, CATII
Power Consumption	<30W
Fuse	2A, T rating, 250V
Environmental
Temperature	Operating: 32°F to 122°F (0°C to 50°C); Nonoperating: -40°F to 159.8°F (-40°C to +71°C)
Cooling Method	Convection
Humidity	+104°F or below (+40°C or below): ≤90% relative humidity; 106°F to 122°F (+41°C to 50°C): ≤60% relative humidity
Altitude	Operating: Below 3,000m (10,000 feet); Nonoperaring: Below 15,000m(50,000 feet)
Mechanical
Size	Length 385mm, Width 200mm, Height 245mm
Weight	3.5KG(with Packing);  2.08KG(without Packing)
