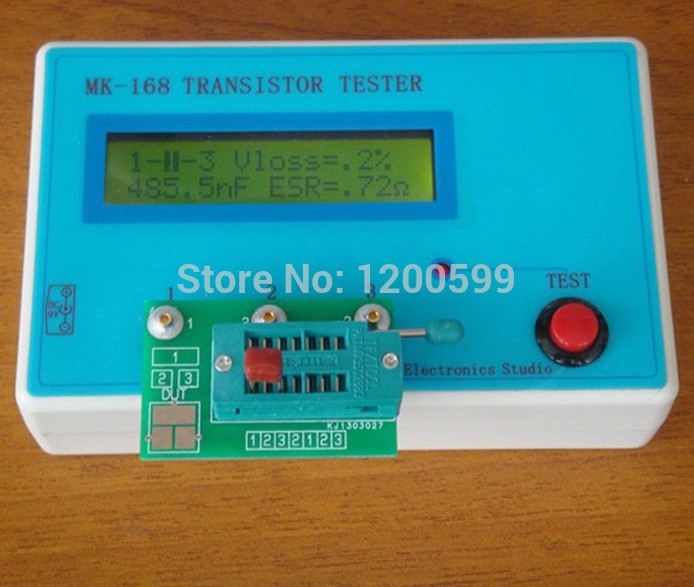

MK-168 Transistor Tester Capacitor LCR NPN PNP Mosfet Resistor Meter

Description :

MK-168 Transistor Tester Diode Triode ESR RLC LCR Capacitance Resistance Inductance Meter MOS PNP NPN

Features :

Microcontroller using 8MHz external crystal, better measurement accuracy.
Key resistance using a thousandth of a metal film resistors, and the remaining use a hundredth metal film resistors.
Backlit LCD screen with low power consumption, compared with the whole power consumption is almost negligible, so the light is always there, easy reading in the dark.

Main function :
Automatic recognition transistor type, pin, current magnification and the base - emitter junction voltage measured at the same time.
Automatic Identification of N and P MOS FET type and pin, measure the gate threshold voltage and capacitance.
Automatic identification the diode pin, measurement the forward voltage.
Automatic identification of small power triac pin.
Automatically detect NPN, PNP bipolar transistors, N-channel and P-channel MOS FET, JFET, diodes, dual diode, thyristor small power unidirectional and bidirectional thyristor.
Measuring resistance.
Measuring inductance.
Measuring capacitance.

One button operation, automatic shutdown with only 20nA shutdown current.
Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured .
It can measure capacitance of 30pF-100mF, resolution 1pF.
Size : 125 x 80 x 32mm

Warm Note :
Before the measurement of capacitance, must to discharge the capacitor, otherwise may damage the instrument :)
