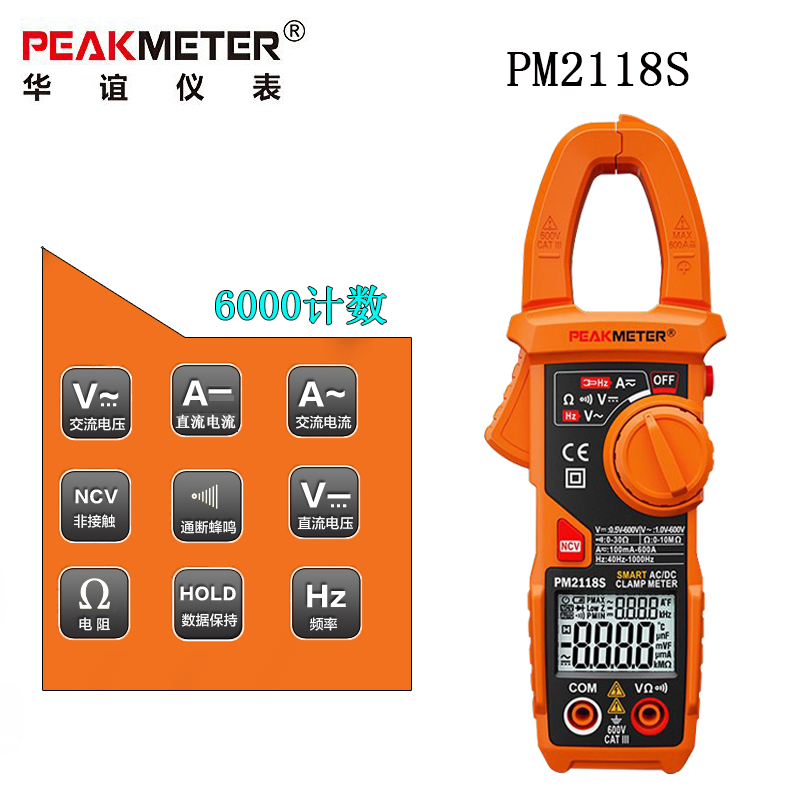

PEAKMETER PM2118S Digital Clamp Meter

Specification

Range

Accuracy

DC Voltage

0.5~600V

+/-(0.5%+3)

AC Voltage（40~65Hz）

1.0~600V

+/-(0.8%+5)

AC Current（40~65Hz）

100mA~400A

+/-(2.5%+5)

400A~600A

+/-(3%+5)

DC Current

100mA~400A

+/-(3%+3)

400A~600A

+/-(3.5%+5)

Resistance

0~10MOhm

+/-(0.8%+3)

Continuity

<30Ohm

Frequency

40Hz~1000Hz    +/-1%rdg

Feature

Counts

6000

Range

Auto

AC Current(AC+DC)

60A/600A

DC Current

60A/600A

AC Current

600mV/6V/60V/600v

AC Current(AC+DC)

6V/60V/600v

Continuity

Yes

Resistance

6KOhm/60kOhm/600kOhm/6MOhm/10MOhm

V/Ohm/A Auto Scan

YES

Frequency (Clamp)

1Khz

Frequency(Voltage)

1Khz

Data Hold

Yes

Back Light

Yes

NCV

Yes

Low Battery Indication

Yes

Dual Display

Yes

Auto Power off

Yes

General

Power supply

2X1.5V  AAA Battery

Weight

150g

Size

158X53X28mm

Jaw Size

24mm

Safety Rating

EN61010-1,-2-030, EN61010-2-032, EN61326-1,CAT.III 600V
