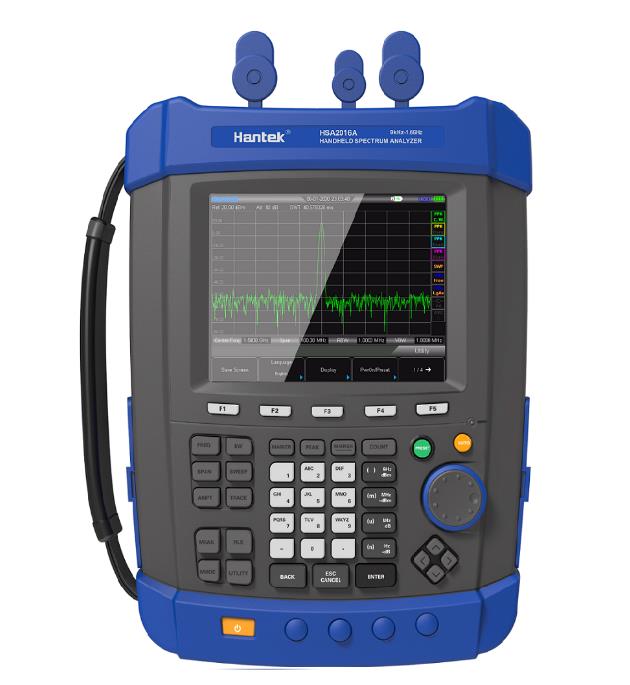

Hantek HSA2016A Digital Spectrum Analyzer
| รหัสสินค้า | 00494 |
| หมวดหมู่ | Spectrum Analyzer |
| ราคา | 43,258.00 บาท |
| ยี่ห้อ | Hantek |
| รุ่น | HSA2016A |
| สถานะสินค้า | Pre-Order |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 27 มิ.ย. 2562 |
| อัพเดทล่าสุด | 20 พ.ค. 2568 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | EA |
หยิบลงตะกร้า
รายละเอียดสินค้า
HSA2016 series
Frequency range: 9KHz-1.6GHz, sensitivity: -161dBm, RBW: 10Hz to 1MHz, high protection and portable design, rugged and durable, can be used in the laboratory, more suitable for field use in the field. Built-in large-capacity lithium battery, can work continuously for more than 4 hours, 18650 standard battery is easy to replace. USB/LAN communication for easy remote control. 5.6-inch 64M color LCD display, 640 * 480 resolution, clear waveform display.
Overview of features:
● Frequency range: 9KHz-1.6GHz
● Sensitivity: -161dBm, RBW: 10Hz to 1MHz
● IP-51 high protection portable design, rugged and durable, can be used in the laboratory, more suitable for field use in the harshfield.
● Built-in large-capacity lithium battery, can work continuously for more than 4 hours, 18650 standard battery is easy to replace.
● Integrated USB Host & Device, support U disk storage, WIFI / LAN optional, convenient networking and remote control
● 5.6-inch 64M color LCD display, 640 * 480 resolution, clear waveform display.
● The HSA2000 spectrum analyzer has the lowest DANL and SSB phase noise and a narrower RBW, which greatly enhances the ability to recognize spurious and noise signals close to the carrier.
● The standard spectrogram feature not only allows the user to intuitively analyze the time stability of the signal, but also accurately find the interstitial signal in the communication system.
● Super strong field strength test function, suitable for field test work of transmitter, base station or antenna coverage, showing field strength or power density. Using amplitude offset
Functional users can also correct gain or loss
● Fast scan time, fast data capture to help locate and identify irregular transient interference signals, optimize your test time and accuracy
● The PC main control software provided can realize the management and storage of test data.
● Suitable applications for HSA2000 series: aerospace and defense: radio and radar, interference analysis, on-site maintenance
| Technical specifications | ||||
| model | HSA2016A | HSA2016B | ||
| frequency | ||||
| Frequency Range | 9KHz~1.6GHz AC coupling | 9KHz~3GHz AC coupling 5M~1.6GHz TG | ||
| Frequency resolution | 1Hz | |||
| Reference frequency | 10MHz | |||
| Frequency reading accuracy | ± (frequency standard reading × frequency reference accuracy +1% × span width + 20% × RBW + cursor resolution +1 Hz) | |||
| Internal reference (10MHz) | Aging rate | ±1ppm/year (0°C to 50°C, benchmark is 25°C) | ||
| Warm drift | ±1ppm | |||
| Cursor resolution | (frequency range) / (scanning points - 1) | |||
| Resolution bandwidth (RBW) | ||||
| -3dB bandwidth | 10Hz to 1MHz, 1-3-10 serial number | |||
| Precision | ±5% RBW=10Hz~1MHz nominal value | |||
| Resolution filter rectangle coefficient | <5:1 nominal value | |||
| Video bandwidth (VBW) | -3dB bandwidth | 1Hz to 1MHz, 1-3-10 sequence | ||
| Precision | ±10% VBM=1Hz~1MHz nominal value | |||
| Display average noise level (1 normal to 1Hz) | ||||
| 9K~1MHz | PreamplifierClose | -108dBm, typical -127dBm | ||
| 1MHz ~10MHz | -128dBm, typical -146dBm | |||
| 10MHz ~500MHz | -142dBm, typical -146dBm | |||
| 500MHz ~2.5GHz | -141dBm, typical -145dBm | |||
| 9K~1MHz | Preamplifier turned on | -131dBm, typical -150dBm | ||
| 1MHz ~10MHz | -148dBm, typical -163dBm | |||
| 10MHz ~500MHz | -161dBm, typical -164dBm | |||
| 500MHz ~1.6GHz | -159dBm, typical -162dBm | |||
| SSB phase noise | ||||
| Carrier offset (20°C to 30°C, center frequency of 500MHz) | 10K | < -92 dBc/Hz, typical -95 dBc/Hz | ||
| 30K | < -93 dBc/Hz, typical -96 dBc/Hz | |||
| 100K | < -95 dBc/Hz, typical -97 dBc/Hz | |||
| 1MHz | < -117 dBc/Hz, typical -119 dBc/Hz | |||
| Scan time | ||||
| range | Span >100Hz | 2ms to 1000s | ||
| Range=0Hz | 600ns to 200s | |||
| Scan mode | Continuous, single | |||
| Trigger source | Free running, video, external | |||
| Trigger slope | Positive or negative | |||
| Trigger delay | Sweep width = 0 Hz | ±12ms to ±12s standard value | ||
| Frequency counter | ||||
| Counter resolution | 1Hz | |||
| Counter uncertainty | ± (frequency reading × frequency reference uncertainty + count resolution) | |||
| Level display range | ||||
| Logarithmic scale and unit | Display 10 grids, 1-2-5-10dB/div; support users 0.1-20dB/div | |||
| Linear scale and unit | 0 to 100%, showing 10 grids | |||
| Scale unit | dBm, dBmV, dBuV, Watts, Volts | |||
| Scan (track) points | 461 | |||
| Number of tracks | 4 | |||
| Detection method | Normal, positive peak, negative peak, sample, average | |||
| Number of traces | 4 | |||
| Trace function | Clear/write, maximum hold, minimum hold, average, view, close | |||
| Level measurement error | ±1.5dB (excluding input VSWR mismatch) 20°C to 30°C, peak detection, preamplifier off, input signal -50~0dBm | |||
| Reference level | ||||
| range | -100dBm to +30dBm, stepping 1dB | |||
| Resolution | Logarithmic scale | 0.01dB | ||
| Linear scale | Approx. log (2.236μV to 7.07V) | |||
| Amplitude | ||||
| Maximum safe input level | Average continuous power | +33dBm | ||
| DC input voltage | 50Vdc | |||
| Measuring range | 9KHz~2MHz | Display average noise level (DANL) to +10dBm | ||
| 2MHz~1.6GHz | Display average noise level (DANL) to +20dBm | |||
| Input attenuator range | 0 to 51dB, 1dB stepping | |||
| Spurious and residual response | ||||
| Second harmonic cutoff point (SHI) | <65dBc, 50MHz to 3GHz (mixer level -30dBm, attenuator 0dB, preamplifier off, 20°C~30°C) | |||
| Third-order intercept cutoff point (TOI) | 50~300MHz | +8dBm, third-order intermodulation product: 2 x -20dBm; frequency interval 100KHz: attenuator 0dB; preamplifier off, 20°C~30°C | ||
| 300MHz~1.6GHz | +10dBm | |||
| Input relative parasitic | <-75dBc, (input mixer is -30dBm) | |||
| Inherent residual response | <-90dBm, typical value -98dBm (input stop, attenuation 0dBm RF, preamplifier off) | |||
| RF input VSWR (tuning) | 10MHz to 1.6GHz | <1.5:1, nominal value, attenuation value is set to 10~20dB | ||
| 10MHz reference/external trigger input | ||||
| Reference input frequency | 10MHz | |||
| Reference input amplitude | 0~10dBm | |||
| Trigger voltage | 5V TTL level | |||
| Connector and output impedance | N type negative; (50Ω) | |||
| General characteristics | ||||
| Screen interface language | English, Simplified Chinese, Traditional Chinese | |||
| Display type | 5.6-inch, 640*480 resolution, 64M color LCD color LCD display | |||
| temperature range | Operating temperature | -10 ° C to +50 ° C, (battery: 0 ° C to 50 ° C) | ||
| storage temperature | -40 ° C to +70 ° C, (battery: -20 ° C to 50 ° C) | |||
| Relative humidity | <95% | |||
| weight | 2.9kg (with battery), 2.6kg (without battery) | |||
| size | 260m X 220m X 75m | |||
| power supply | Input voltage range | DC: 12-17V, maximum 2.8A input 220VAC±15% | ||
| AC frequency range | 40Hz to 60Hz | |||
| Power consumption | Up to 32W |
|||
