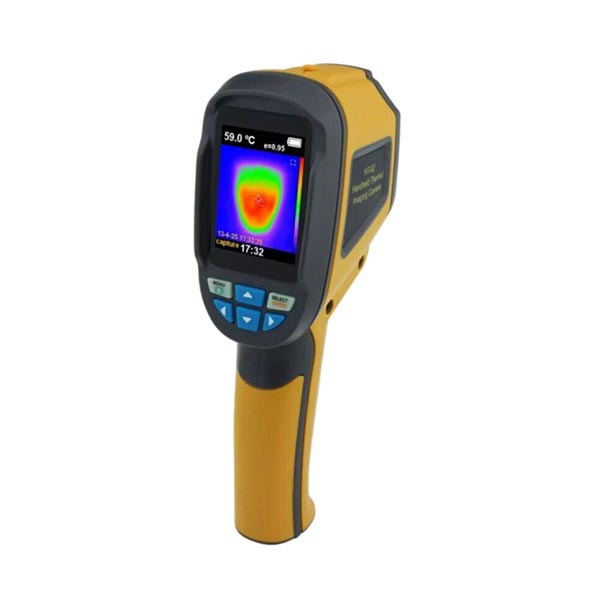

HTI HT-02 Thermal Imaging Camera

Features:

• Infrared thermal imager that can blend the visible and infrared images.
• Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
• This infrared imaging device is professional, precision and efficient.
• For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
• Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specifications:

• Display: 2.4 inch full viewing angle high-resolution color screen
• Resolution: 60 * 60
• Resolution of visible image: 0.3 mega pixels.
• Total Pixel: 3600
• FOV/Shortest Focal Length: 20× 20/0.5m
• Thermal Sensitivity: 0.5 degrees
• Measuring Mode: Thermopile
• Temperature Range: -20 degrees to 300 degrees (-4 Fahrenheit to 572 Fahrenheit)
• Measuring Accuracy: ±2% or ±2 degrees (±4Fahrenheit )
• Wavelength Range: 8-14μm
• Emissivity: 0.1-1.0 Adjustable
• Image Frequency: 6HZ
• Focus Mode: Fixed
• Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
• Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
• Image Storage: SD card(4G)
• File Format: bmp
• Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down
• Battery Type: 4 * 1.5V AA battery (Not Included)
• Battery Life: 6 Hours
• Auto Power-off Time: 12 Minutes
• Authentication: CE, RoHS
• Operating Temperature: -5 degrees to 40 degrees (23 Fahrenheit  to 104 Fahrenheit )
• Storage Temperature: -20 degrees to 50 degrees (-4 Fahrenheit to 122 Fahrenheit )
• Relative Humidity: 10%RH to 80%RH
• Item Size: 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
• Item Weight: 231.2g / 8.2oz
• Package Size: 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
• Package Weight: 927g / 32.7oz
