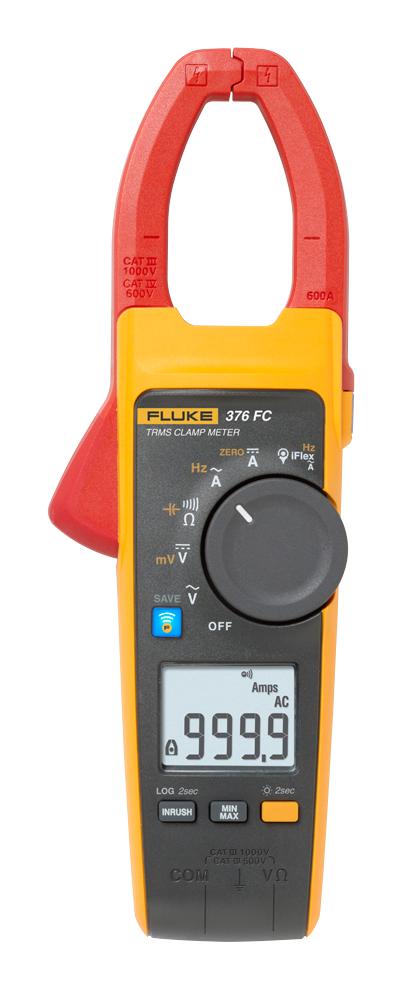

FLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlex

FLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlex
FLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlexFLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlexFLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlexFLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlexFLUKE 376 FC Digital Clamp Meter True-rms AC/DC with iFlex
รหัสสินค้า 00537
หมวดหมู่ Digital Clamp Meter
ราคา 25,800.00 บาท
น้ำหนัก 390 กรัม
ยี่ห้อ Fluke
รุ่น 376 FC
ขนาด 246 x 83 x 43mm
สถานะสินค้า Pre-Order
สภาพ สินค้าใหม่
ลงสินค้า 7 พ.ย. 2562
อัพเดทล่าสุด 5 ส.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
EA
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
รายละเอียดสินค้า / Product Details

Fluke 370 FC Series True RMS Wireless AC/DC Clampmeters

Fluke 370 FC clampmeters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. Some of the most frustrating tasks for electricians and maintenance technicians involve troubleshooting intermittent faults because these rarely occur at convenient times. The 370 FC clampmeters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery. Fluke 370 FC models are: 374 FC ( 905-5911 ) 600 A, 6000 Ω; 375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz; 376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits

• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
• Record results directly to your phone and the Cloud
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• CAT IV 600 V, CAT III 1000 V safety rating
• Soft carrying case



Note

Measurement data from 370 FC Series clampmeters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to wireless service area, plan pricing and other criteria).

Supplied with

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)





คุณสมบัติ / Specifications
คุณสมบัติ Value
Absolute Maximum AC Current Measurement 1kA ac
Absolute Maximum DC Current Measurement 1kA dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 60kΩ
Model Number 376 FC
Connectivity Bluetooth
AC Current Measurement Resolution 100mA
DC Current Measurement Resolution 100mA
Best DC Current Accuracy ±(2% rdg + 5dgts)
Clamp Meter Type Multifunction Clamp
Best AC Current Accuracy ±(2% rdg + 5dgts)
Best AC Voltage Accuracy ±(1.5% rdg + 5dgts)
Best DC Voltage Accuracy ±(1% rdg + 5dgts)
Jaw Capacity Busbars 34mm
Maximum Operating Temperature +50°C
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Best Resistance Measurement Accuracy 1% ±5 Digits
Height 43mm
Safety Category CAT III 1000 V, CAT IV 600 V
Weight 388g
DC Voltage Measurement Resolution 100mV
Power Source Battery
True RMS Yes
Length 246mm
Display Type Backlit LCD
Width 83mm
Battery Type IEC LR6, NEDA 15A, 2 AA
Minimum Operating Temperature -10°C
Safety Category Voltage 600 V, 1000 V
AC Voltage Measurement Resolution 100mV
Resistance Measurement Resolution
Dimensions 246 x 83 x 43mm
Safety Category Level CAT III, CAT IV
