รหัสสินค้า	00546
หมวดหมู่	Digital Ossilloscope
ราคา	17,580.00 บาท
น้ำหนัก	2,080 กรัม
ยี่ห้อ	Hantek
รุ่น	MSO5202D
ขนาด	385 x 200 x 245 mm.
สถานะสินค้า	Pre-Order
สภาพ	สินค้าใหม่
ลงสินค้า	21 พ.ย. 2562
อัพเดทล่าสุด	4 มิ.ย. 2568
คงเหลือ	ไม่จำกัด
จำนวน	EA

model	MSO5202D	MSO5102D	MSO5062D
collection
Sampling type	Real-time sampling: 1GSa/s
Collection method
sampling	Sampled data
Peak to peak	Display high frequency and random glitch
average value	Average waveform, number of times: 4, 8, 16, 32, 64, 128
Input
Input coupling	DC, AC or ground (DC, AC, GND)
input resistance	1MΩ±2% ‖20pF±3pF
Probe attenuation	1X, 10X
Probe attenuation coefficient setting	1X, 10X, 100X, 1000X
Maximum input voltage	Type I and Type II: 300VRMS (10×); Mounting Type III: 150VRMS (1×); Mounting Type II; AC peak with a slope of 20 dB/decade from 100 kHz to 3 MHz* 13 V. For non-sinusoidal waveforms, the peak value must be less than 450 V. The offset duration above 300 V should be less than 100 ms. The RMS signal level (including all DC components removed by AC coupling) must be limited to 300 V. If these values are exceeded, the instrument may be damaged.
Horizontal system
Sample rate range	500MS/s--1GS/s
Waveform interpolation	(sin x)/x
Storage depth	Single channel up to 1M, dual channel 512K (4K, 40K optional)
Scanning range	2ns/div~40s/div	8ns/div~40s/div
Sampling rate and delay time accuracy	±50ppm (at any time interval greater than 1ms)
Location range	2ns/div to 8ns/div; (-4div xs/div) to 20ms;	20ns/div to 80us/div; (-8div xs/div) to 40ms; 200us/div to 40s/div; (-8div xs/div) to 400s;
Time interval measurement accuracy (full bandwidth)	Single: ± (1 sample interval + 500ppm x reading + 0.6ns); > 16 average values: ± (1 sample interval + 500ppm x reading + 0.4ns); sampling interval = seconds / grid ÷ 200
Vertical system
Vertical resolution	8-bit resolution, simultaneous sampling for each channel
Vertical sensitivity	2mV/div to 10V/div
bandwidth	200MHz	100MHz	60MHz
Rise time at the BNC	1.8ns	3.5ns	5.8ns
Offset range	2mV/div to 20mV/div, ±400mV 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V 5V/div to 10V/div, ±50V
computation	Add, subtract, multiply, divide, FFT
FFT	Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample points
Bandwidth limit	20MHz
Low frequency response (-3db)	≤10Hz at the BNC
Vertical gain accuracy	In the "sampling" or "average" acquisition mode, the accuracy of 10V / grid to 10mV / grid is ± 3%; in the "sampling" or "average" acquisition mode, the accuracy of 5mV / grid to 2mV / grid is ± 4 %
DC measurement accuracy, average acquisition mode	The vertical displacement is zero, and when N≥16: ±(3%×reading+0.1 +1+1V), suitable for selecting units of 10 mV/div or larger. When the vertical displacement is not zero, and N≥16: ±[3%×(reading + vertical position) + 1%+0.2 grid of vertical position). Set 2mV from 2mV/div to 200mV/div; increase 50mV from 200mV/div to 10V/div
Voltage measurement repeatability, average acquisition mode	Accumulate voltage increments between any two groups of ≥16 or more waveforms under the same settings and environmental conditions: ± (3% × reading + 0.05 cells)
Trigger system
Trigger type	Edge, video, pulse, slope, timeout, alternation, pattern, persistence, queue, repeat
Trigger source	CH1, CH2, EXT, EXT/5, AC Line, D0-D15
Trigger mode	Automatic, normal, single
Coupling method	DC, AC, noise suppression, high frequency rejection, low frequency rejection
Trigger sensitivity (edge trigger type)	DC (CH1, CH2): 1 grid from DC to 10MHz; 1.5 grids from 10MHz to 100MHz; 2 grids from 100MHz to maximum range; DC (EXT): 200mV from DC to 100MHz; from 100MHz to 350mV maximum range ; DC (EXT / 5): from DC to 100MHz is 1V; maximum range is from 1.75V to 100MHz; AC: signal attenuation below 10Hz; HF rejection: greater than 80kHz when the attenuated signal; low inhibition: 150kHZ frequency is greater than, Same as DC coupling limit, less than 150kHZ;
Trigger level range	CH1, CH2: ±8 divisions from the center of the display; EXT: ±1.2V; EXT/5: ±6V
Trigger level accuracy (typical) relative to signals with rise and fall times greater than or equal to 20ns	CH1, CH2: 0.2 cells × volts/division within ±4 divisions from the center display; EXT: ± (6% set value + 40mV); EXT/5: ± (6% set value + 200mV );
Set the level to 50% (typical)	Operate with an input signal greater than or equal to 50 Hz
Video trigger
Video trigger type	CH1, CH2: peak-peak amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V
Signal format and field rate, video trigger type	Support NTSC, PAL and SECAM for any field or any line
Release range	100ns ~ 10s
Pulse width trigger
Pulse width trigger mode	Trigger when (< , >, =, or ≠); "positive" pulse or "negative" pulse
Pulse width trigger point	Equal to: The oscilloscope triggers when the falling edge of the pulse crosses the trigger level. Not equal: If the pulse is narrower than the specified width, the trigger point is the falling edge. Otherwise, when the pulse duration is longer than the "pulse width" when the specified time, the oscilloscope is triggered. Less than: trigger point is the trailing edge is greater than (also called time-out trigger): When a pulse duration between longer than the "pulse width" specified When the time is up, the oscilloscope triggers.
Pulse width range	20ns ~ 10s
Slope trigger
Slope trigger mode	Trigger when (<, >, =, or ≠); "positive" slope or "negative" slope
Slope trigger point	Equal to: The oscilloscope triggers when the slope of the waveform is equal to the set slope. Not equal to: The oscilloscope triggers when the slope of the waveform is not equal to the setting. Less than: The oscilloscope triggers when the slope of the waveform is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.
Time setting range	20ns ~ 10s
Timeout trigger
Timeout trigger mode	Rising edge
Time setting range	20ns ~ 10s
Alternate trigger
CH1	Internal trigger: edge, pulse width, video, slope
CH2	Internal trigger: edge, pulse width, video, slope
Trigger frequency counter
Reading resolution	6 digits
Accuracy (typical)	±30ppm (including all frequency reference errors and ±1 calculation error)
Frequency Range	AC coupling, from a minimum of 4 Hz to a nominal bandwidth
signal source	“Pulse Width” or “Edge Trigger” mode: All available trigger sources “Frequency Counter” are always measuring the trigger source, including when the oscilloscope acquisition is paused due to a change in the operating state, or when a single event acquisition has ended Time. “Pulse Width” trigger mode, the oscilloscope calculates the measurement at 1 s, the window has a valid amplitude, and matches the pulse that can trigger the event condition, for example, if the PWM pulse train is set to <mode, and the width is set accordingly When there is a small time, there is a narrow pulse. Edge Trigger mode: The oscilloscope calculates all edges with sufficient amplitude and correct polarity. "Video Trigger" mode: "Frequency Calculator" does not work.
measuring
Cursor measurement	The voltage difference between the cursors ΔV The time difference between the cursors ΔT ΔT, in Hertz (1/△T)
Automatic measurement	Frequency, period, average, peak-to-peak, rms, maximum, minimum, rise time, fall time, positive bandwidth, negative bandwidth, rising edge phase difference, falling edge phase difference, positive duty cycle, negative Duty cycle, bottom value, top value, intermediate value, amplitude, overshoot, preshoot, cycle average, period mean square, falling edge overshoot, rising edge preshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
display
Display type	7'' TFT true color LCD screen
Resolution	800*480 dots
Display contrast	16-speed adjustable and on-screen display adjustment progress bar
Logic Analyzer Specifications
Number of sampling channels	16 channels
Input maximum impedance	200K (C=10p)
Input voltage range	-60V~60V
Logic gate range	-8V~8V
Maximum sampling rate	500MHz
Compatible input	TTL, CMOS, ECL
Sampling depth	512K
trigger
Edge trigger	D0-D15 selects the slope (rising edge or falling edge)
Slope trigger	D0-D15 select pulse polarity (positive pulse or negative pulse), pulse trigger timing (=, ≠, <, >), trigger pulse width
Pattern trigger	D0-D15 selects the pattern (H, L, X)
Continuous trigger	D0-D15 select duration and trigger timing (data end, data start and data delay)
Queue trigger	D0-D15 select specific data index (0-3) and pattern (H, L, X)
repeat times	D0-D15 selects the pattern (H, L, X) and the number of repetitions
Probe compensator output
Output voltage (typical)	A load of about 5Vpp input ≥1MΩ
Frequency (typical)	1kHz
power supply
voltage	100-120VACRMS (±10%), 45Hz to 440Hz, CATII 120-240VACRMS (±10%), 45Hz to 66Hz, CATII
power	<30W
fuse	2A, T rating, 250V
surroundings
temperature range	Operation: 32°F to 122°F (0°C to 50°C); non-operational: -40°F to 159.8°F (-40°C to +71°C)
cooling method	fan
Humidity range	+104°F or less (+40°C or less): ≤90% relative humidity; 106°F ~122°F (+41°C ~ 50°C): ≤60% relative humidity
Altitude	Operation time: 3000 meters (10000 feet) or less; non-operation time: 15000 meters (50,000 feet) or less
Mechanical specifications
size	385mm x 200mm x 245mm
weight	3.5KG (including packaging); 2.08KG (without packaging)

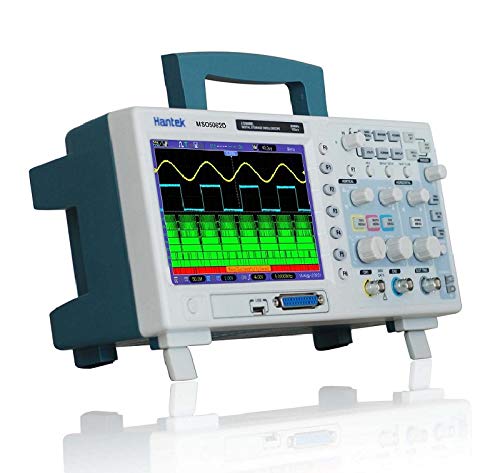

HANTEK MSO5202D Digital Oscilloscope 200Mhz
