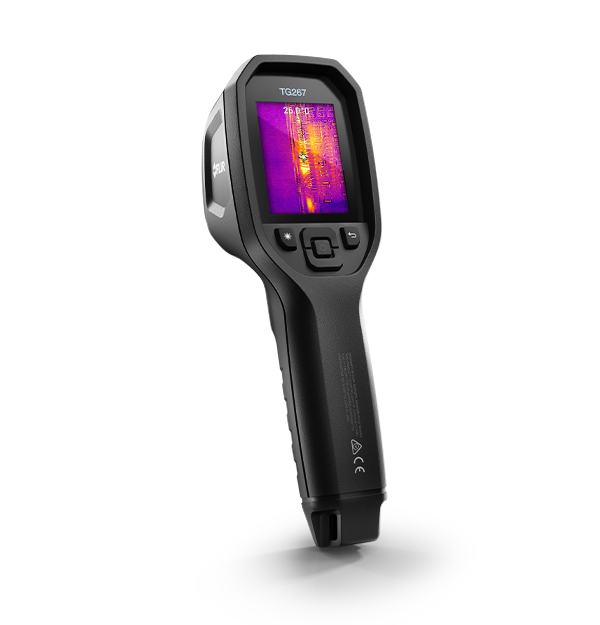

FLIR TG267 Thermal Imaging Camera

FLIR TG267 Thermal Imaging Camera
FLIR TG267 Thermal Imaging CameraFLIR TG267 Thermal Imaging CameraFLIR TG267 Thermal Imaging CameraFLIR TG267 Thermal Imaging CameraFLIR TG267 Thermal Imaging Camera
รหัสสินค้า SKU-00606
หมวดหมู่ Thermal Imaging Camera, กล้องถ่ายภาพความร้อน
ราคา 24,869.00 บาท
น้ำหนัก 395 กรัม
ยี่ห้อ FLIR
รุ่น TG267
ขนาด 210mm x 64mm x 81mm.
สถานะสินค้า Pre-Order
สภาพ สินค้าใหม่
ลงสินค้า 25 มิ.ย. 2563
อัพเดทล่าสุด 31 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
EA
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

FEATURES

  • Identify problems quickly
    • True 160 x 120 IR pixel imager (19,200 pixels)
    • -25°C to +380°C (-13°F to +716°F) temperature range measurement capability
    • Included Type-K thermocouple [up to +260°C (+500°F)]
    • Bullseye laser pointer
  • Produce crisp thermal images
    • FLIR-patented MSX image enhancement
    • Display and capture thermal or visual images with temperature readings
    • Compare before-and-after stored images with FLIR Tools® software
    • View thermal images in a preferred color palette on the bright 2.4" color display
  • Rugged environment capability
    • Can withstand a 2-meter drop
    • Bright LED flashlight
    • Upload measurements and images in the field via a METERLiNK® connection to the FLIR Tools® mobile app
    • FLIR 2-10 warranty

SPECIFICATIONS

  • Package contents include the camera, wrist strap lanyard, USB cable, pouch, thermocouple, and printed documentation
  • Imaging and optical
    • 160 x 120 pixel IR resolution
    • Digital image enhancement
    • <70mK thermal sensitivity/NETD
    • 57° x 44° field of view (FOV)
    • 0.3m (0.98ft) minimum focus distance
    • 24:1 distance-to-spot ratio
    • 8.7Hz image frequency
    • Fixed focus
    • Uncooled microbolometer focal plane array
    • 7.5µm to 14µm spectral range
    • 12µm detector pitch
  • Image presentation
    • 320 x 240 pixel display resolution
    • 2.4" portrait screen size
    • Iron, rainbow, white hot, black hot, arctic, and lava color palettes
    • Automatic image adjustment
    • MSX® (Multi-Spectral Dynamic Imaging) visual with temperature reading image mode
    • Gallery of images
  • Measurement and analysis
    • -25°C to +380°C (-13°F to +716°F) object temperature range
    • 0.1°C (0.2°F) IR temperature resolution
    • Repeatability of the image is ±1% of reading or ±1°C (2°F), whichever is greater
    • 150ms response time
    • Continuous scanning IR thermometer measurement
    • 0.26m (0.85ft) minimum measurement distance
    • Type-K range with the included Type-K probe is up to +260°C (+500°F)
    • Type-K accuracy of ±[1.0% +3°C (7°F)]
    • Center spot on/off spotmeter
  • Set-up and service functions
    • Set-up commands
      • Local adaptation of units, language, date, and time formats
      • Screen brightness (high, medium, and low)
      • Gallery and deletion of images
    • 4 preset levels of emissivity correction with custom adjustment of 0.1-0.99
  • Image storage and visual camera
    • 50,000 image storage capacity on a 4GB card
    • JPEG image file format with spot temperature data
    • 2MP (1600px x 1200px) digital camera resolution
    • 71° x 56° field of view (FOV), adapts to IR lens
  • Light and laser
    • 100 lumen LED flashlight with on/off option
    • Class 1 laser projects center spot and outlines circular measurement area to indicate the size
  • Data communication interfaces
    • Bluetooth® BLE
    • USB Type-C for data transfer and power
  • Additional specifications
    • Rechargeable 3.7V Li-ion battery
    • Battery operating time provides 5 hours of scanning
    • Battery charging time of 4 hours to 90%
    • 0.394kg (13.9oz) in weight
    • 210mm x 64mm x 81mm (8.3" x 2.5" x 3.2") in size (LxWxH)
    • Designed to withstand drops of 2m (6.56 feet)
    • Shock/vibration
      • 25g (IEC 60068-2-27)
      • 2g (IEC 60068-2-6)
    • Off, 5-minute, 15-minute, and 30-minute adjustable power management
