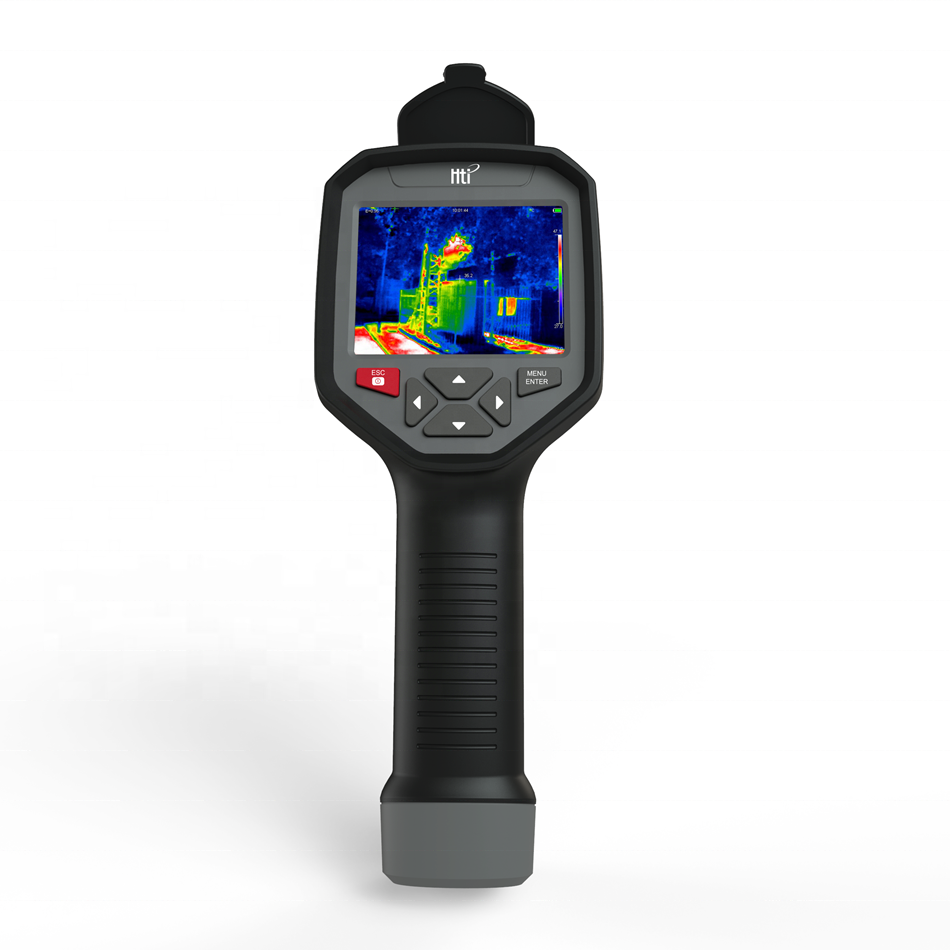

HTI HT-A8 Thermal Imager Camera

Application:

The product can be used in fields of Car reparing, floorheating maintainence, power box short-circuit
detecting,building leakage detecting,electrical product maintainence, fire fighting,archaeology, geology, energy, electronic manufacture, etc. It is the ideal selection for electrician,maintenance person and technicians to find the problem area quickly.



Specification:

Model: HT-A8
Infrared image resolution: 220*160
Visible image resolution: 300,000 pixels
Field angle: 35°*27°
Display: 3.5" full angle TFT display screen
LCD resolution: 640*480
Focus mode: Fixed
Thermal sensitivity: 0.07°C
Temperature measuring range: -20~450°C(-4~842°F)
Measurement accuracy: ±2°C(≤100°C),±2%(100~300°C),±3%(300~400°C),±10%(>400°C)
Emissivity: Adjustable from 0.01~1.00
Frame rate of thermal images: 9 Hz
Wavelength coverage: 8~14 um
Color palette: Rainbow,iron oxide red,cold color,black&white,white&black
Storage medium: Built-in 8G
File format: JPG
USB: Micro USB 2.0
Power supply: Built-in chargeable 26650 battery
Working time: 3~4 hours
Automatic power-off time: 5 mins/20 mins/not power off automatically Selectable
Product size(L*W*H): 256mm*97.2mm*128.9mm
Product weight: 588g
Working temperature: 0 to 45°C
Storage temperatrue: -20~60°C
Relative humidity:<85% RH
Language: English,Chinese,Italian and German
