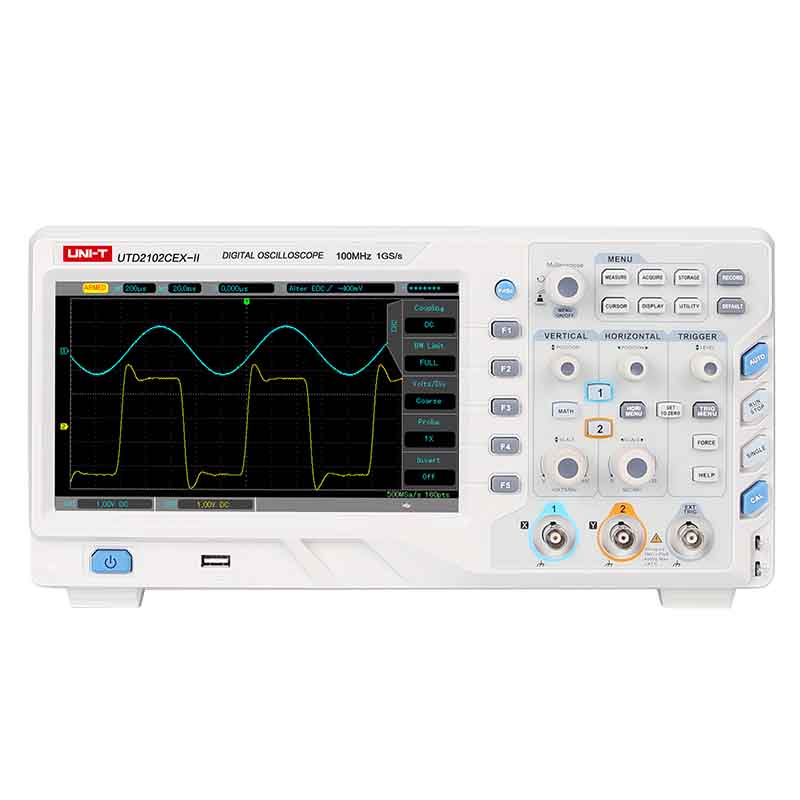

UNI-T UTD2102CEX-II Digital Ossilloscope

UTD2000CEX-II series is cost-effective benchtop digital storage oscilloscope with 8-inch screen, 800×480 high resolution display, 1GS/s sampling rate, 20,000wfms/s waveform capture rate, 25kpts memory depth, a variety of trigger types, which is more suitable for general signal measurements.

Specifications
Model	UTD2102CEX-II
Bandwidth	100MHz
Channels	2
Sampling rate	1GS/s (single channel), 500MS/s (dual channels)
Rise time	≤3.5ns
Memory depth	25kpts
Waveform capture rate	≥20,000wfms/s
Vertical scale (V/div)	1mV/div~20V/div (1MΩ)
Time base scale (s/div)	2ns/div~50s/div
Input impedance	(1MΩ±2%)//(22pF±3pF)
Storage methods	Setup, wave, bitmap
Trigger types	Edge, pulse width, slope, video, runt, window
Waveform operations	A+B, A-B, A×B, A/B, FFT
Auto measurements	Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq,Rise, Fall, RiseDelay, FallDelay, +Width, -Width, FRR, FRF, FFR , FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 paramet ers in total
Number of measurements	Display 5 measurements at the same time
Measurement statistics	Average, Max, Min, standard deviation, number of measurements
Frequency counter	6 bits
Interfaces	USB-OTG, Pass/Fail
General Characteristics
Power	100~240V ACrms, 50Hz/60Hz
Display	8-inch TFT LCD, WVGA (800 x 480)
Product color	White and grey
Product net weight	3.5kg
Product size	336mm x 164mm x 108mm
Standard accessories	Probe x 2 (1x, 10x switchable), power cord, USB interface cable
Standard individual packing	Carton box
Standard quantity per carton
Standard carton measurement	450mm x 420mm x 280mm
Standard carton gross weight
