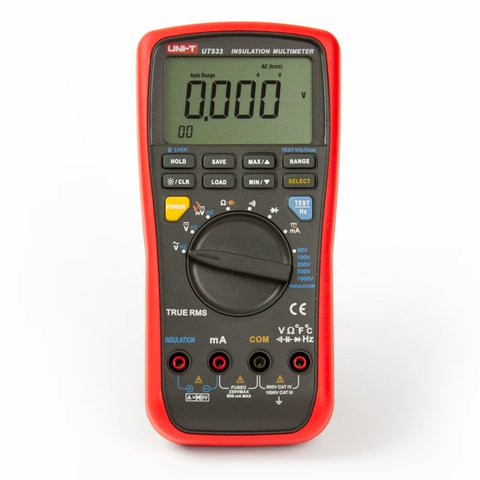

UNI-T UT533 Insulation Resistance Multimeter

UNI-T UT533

SPECIFICATION:
Insulation Resistance Measurement:
50V: 0.1MOhm ~ 50.0MOhm +/- (3%+5)
100V: 0.1MOhm ~ 100.0MOhm +/- (3%+5)
250V: 0.2MOhm ~ 99.9MOhm +/- (3%+5), 100MOhm ~ 250MOhm +/- (3%+5)
500V: 0.5MOhm ~ 99.9MOhm +/- (3%+5), 100MOhm ~ 500MOhm +/- (3%+5)
1000V: 4.0MOhm ~ 99.9MOhm +/- (3%+5), 100MOhm ~ 999MOhm +/- (3%+5), 1.00GOhm ~ 2.00GOhm +/- (5%+5)
DC Voltage Measurement: 60mV/600mV/6V/60V/600V/1000V +/- (0.09%+6)
AC Voltage Measurement: 6V/60V/600V/1000V +/- (1%+3)
DC Current Measurement: 60mA/600mA +/- (1.0%+2)
AC Current Measurement: 60mA/600mA +/- (1.5%+2)
Resistance Measurement: 600 Ohm/6kOhm/60kOhm/600kOhm/6MOhm/40MOhm +/- (0.9%+2)
Capacitance Measurement: 10nF/100nF/1uF/10uF/100uF +/- (3%+5)
Frequency Measurement: 60Hz/600Hz/6KHz/60KHz/600KHz/1MHz +/- (0.1%+3)
Temperature Testing: -40°C ~ 537°C +/- (1%+10), -40°F ~ 998 °F +/- (1%+10)

SPECIAL FUNCTIONS:
Auto Ranging
Diode
Continuity Buzzer
True RMS
Data Hold
Data Logging: 99
Full Icon Display
Display Backlight
Max / Min Mode
Memory Zeroing
Sleep Mode
Low Battery Display

GENERAL CHARACTERISTICS:
Power: 1.5V Battery× 6
LCD Size: 81 × 46mm
Product Color: Red and Grey
Product: Net Weight 505g
Product Size: 97 × 203 × 46mm
Standard Accessories: Battery, Test Lead, English Manual, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
