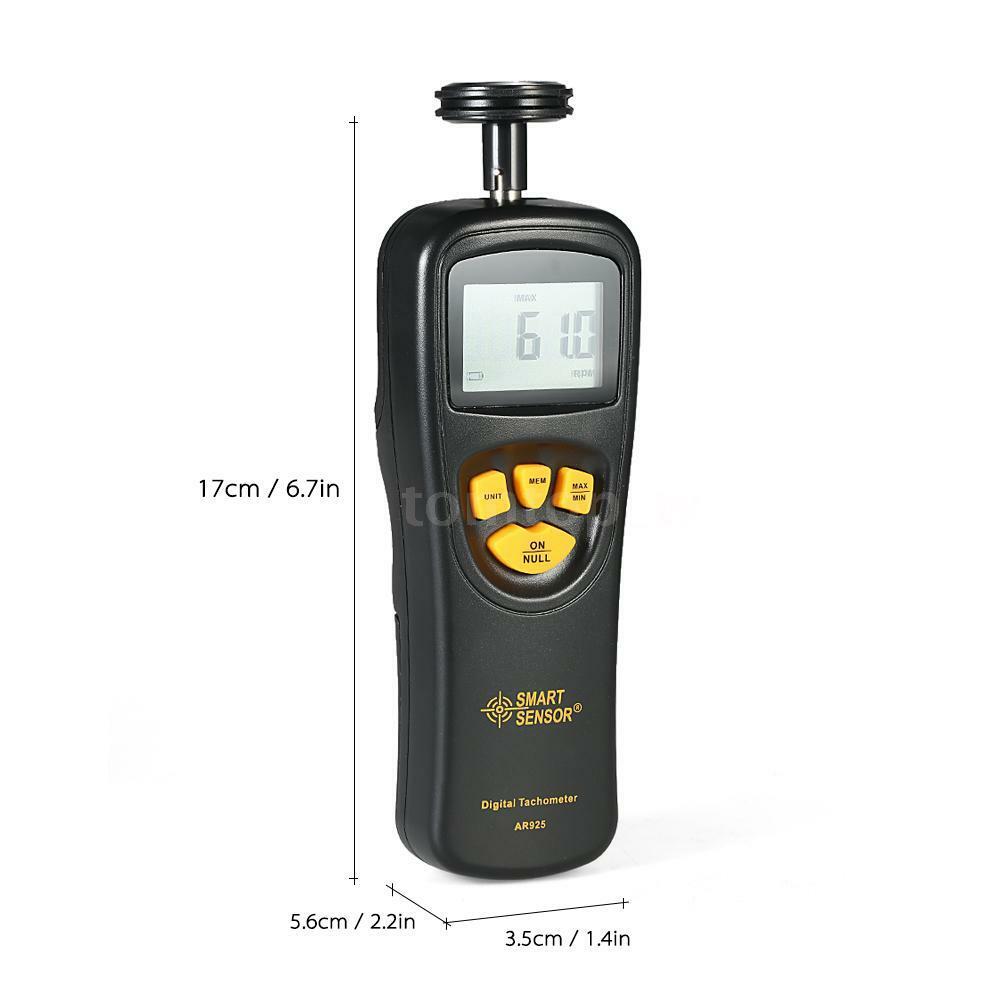

SmartSensor AR925 เครื่องวัดความเร็วรอบ

รายละเอียด AR925

1) Applying the MCU and electrooptical technology, can perform contact measurement of rotating & linear rolling speed efficiently.

2) Wide measuring range and high resolution

3) Large LCD display

4) Automatically store for the MAX, Min and LAST value

5) Accessories convertible for differenet measurement

6) Equipped with convex channel lineal rate sensor, it is convenient for measuring the lineal rate of the wire, cable. ropes etc.

7) Low batery indication so you can know when need to charger the units

8) legant and easy to use.

9) Solid structure built with durable electronic elements and light ABS plastic house

Specifications AR925

1) Measuring Range

     1.1) 0.5~19999RPM

     1.2) 0.05~19999.9m/min

     1.3) 0.2~6560Ft/min

2) Resolution

     2.1) 0.1RPM(0.5~999.9RPM)

     2.2) 1RPM(Over~1000RPM)

     2.3) 0.01m/min(0.05~99.99RPM)

     2.4) 0.1m/min(0.1~999.9Ft/min)

     2.5) 1Ft/min(Over 1000Ft/min)

3) Accuracy

     3.1) ±(0.05%+1 word)

     3.2) Sampling Frequency

     3.3) 0.8 Sec (Over 60RPM)

4) Max & Min Data Function

5) Provide Probe

6) Low Battery Indication

7) Measuring Mode

8) Contact-type

9) Data Hold

10) LCD Backlight

11) Operating Temperature 0~50 °C

12) Storing Temperature -20~70 °C
