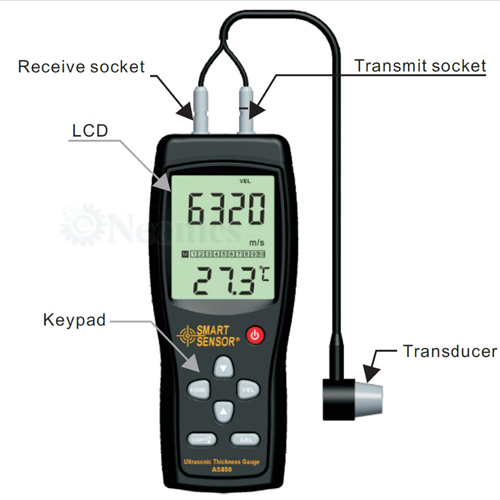

SMART SENSOR AS850 เครื่องวัดความหนาอัลตร้าโซนิค

Features

• Automatic Calibration for Accuracy
• Automatic Linear Compensation: This advanced software program improves accuracy by correcting the linearity of the codec.
• Adjusts the audio speed / sound thickness.
• This makes it easier to work or work in the wild
• Sound speed 12 for different material, adjustable
• Life key for more than 10,000 times
• Largr LCD display reading
• Low battery indicator and automatic shutdown
• Unit has Memory stores all settings even when closed.

Specifications

• display screen : 4 - Digital Display
• Measurement range : 1.2 ~ 225mm (steel)
• Minimum limits for measuring tubes : φ20 * 3mm (steel)
• accuracy : ± (1% hour + 0.1) mm, means thickness measurement
• Audio Speed Range : 1000 to 9999 m / s
• Frequency of operation : 5 megahertz
• Minimum Display : 0.1 millimeter
• Mininum Co., Ltd for measuring tube (steel) : 20 * 3.0 mm (steel)
• Audio Speed Range : 1000 ~ 9999 m / s
• Measured Sound Speed Specification Thickness : Measurement range: 1000 to 9999 m / s.
• When defining thickness> 20 mm, accuracy +/- 5%;
• When defining thickness <20 mm, accuracy +/- 1 mm / h * 100%
• Working temperature : 0 ℃ to 40 ℃
• relative humidity : <90% RH
• Hardware / Workpiece / Material Temperature : <60
• Power supply : 1.5V AAA * 3 pieces (not included due to limited air)
• Current Operations : Normal operation current 50mA
• with backlight current 120mA current
• standby : 20uA
• Current standby : 20uA
• Product Net Weight / Product Size 210g /70.0*145.5*28mm
