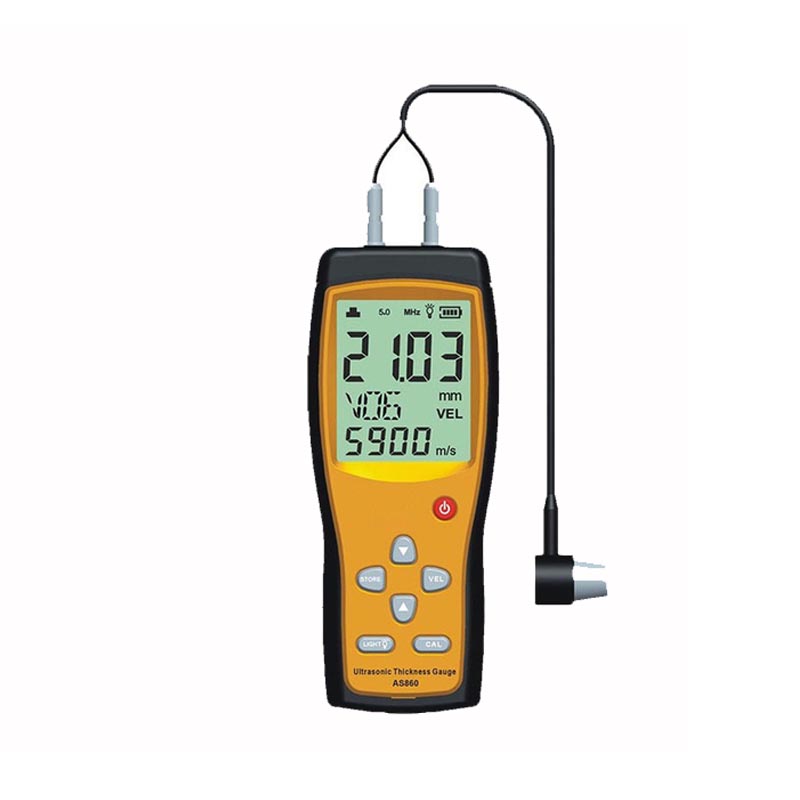

Smart Sensor AS860 เครื่องวัดความหนาอัลตร้าโซนิค

Features

• Accuracy Calibration
• Sound Velocity Measurement: Define sound velocity thickness to improve accuracy
• 12 Sound velocity for different materials
• Indicator status
• Thickness 12 data alignment Store and restore
• Thickness Alarm setting
• Backlight function
• Low battery indication
• Auto shutdown

Specifications

• Measurement range : 1.00 to 300.0 mm (steel)
• accuracy : (1% hour + 0.1 mm)
• Resolution : 0.01 millimeters (1.00 to 99.99 millimeters) 0.1 millimeters (100 to 300 millimeters)
• Minimum Limits for Steel Tube : 15 * 2.0mm (6 codecs) 20 * 3.0mm (10 codecs)
• Sound Speed : 1000 to 9999 m / s,
• thickness 20 mm accuracy, speed : 1 mm / hr. 100%
• thick, 20 mm accuracy, speed : 5%.
• Working environment :
• Working temperature: 0 ° C to 40 ° C Working temperature : <60
• Relative humidity : <90% Do not use extreme vibration /
• Erosive material avoids impact and moisture.
• Power supply : 1.5V AAA * 3 pieces (not included due to limited air)
• Current Operations : 35mA (with back light)
• frequency 5 megahertz
• Minimum limits for measuring tubes Ф20 * 3mm (steel)
• Auto Calibration Center
• Automatic linear compensation
• Joint indicator
• Metric / Imperial Switch
• Battery Indicator / Auto Shutdown
• Product Net Weight / Product Size 240 g / 150 * 80.5 * 34 mm
