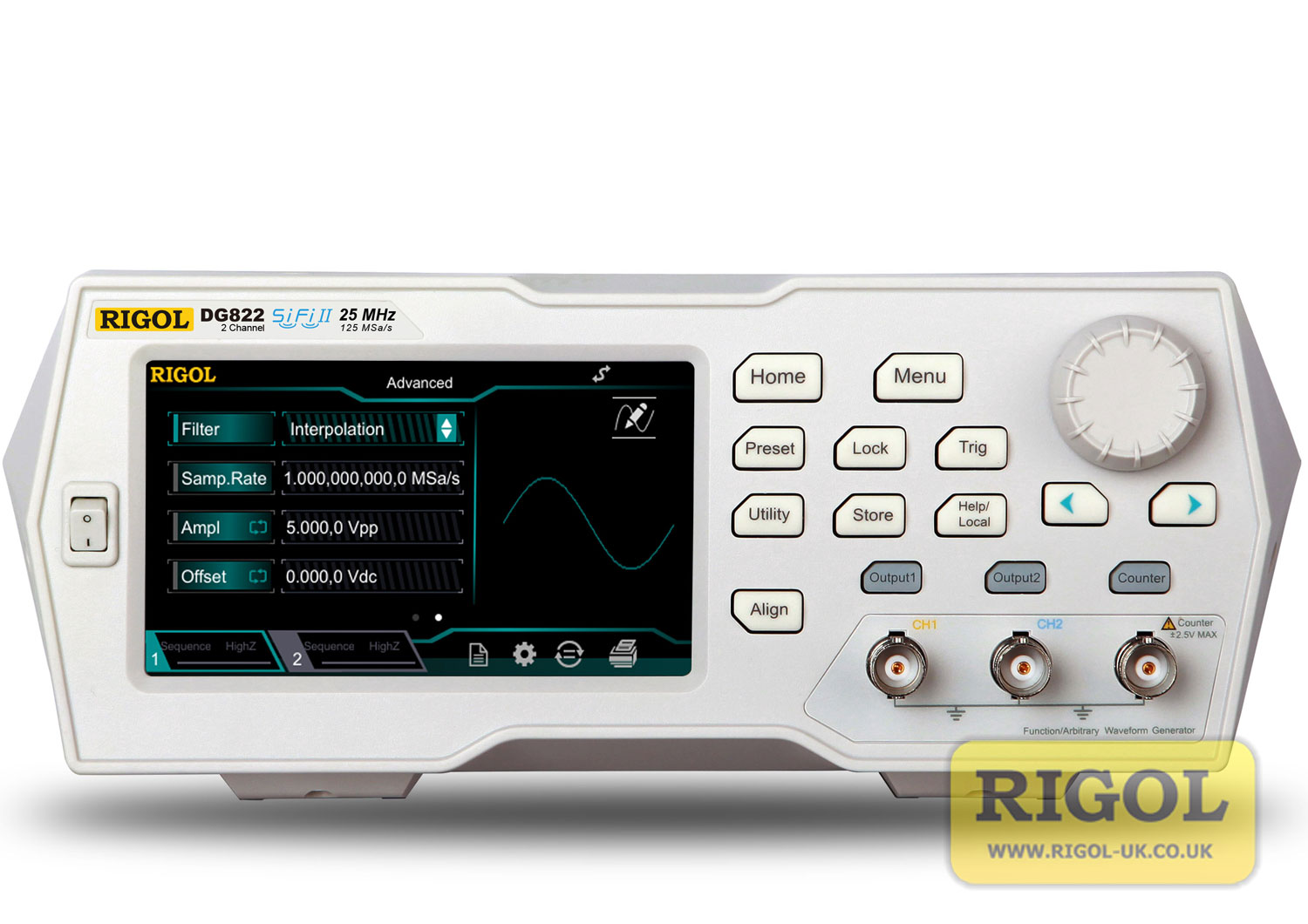

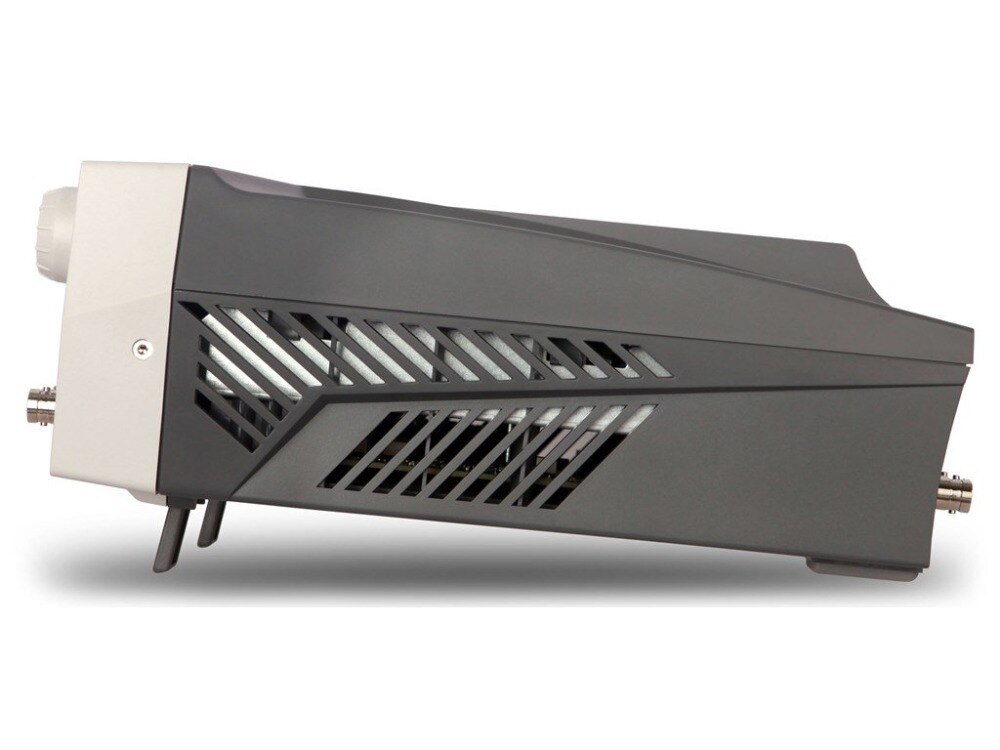

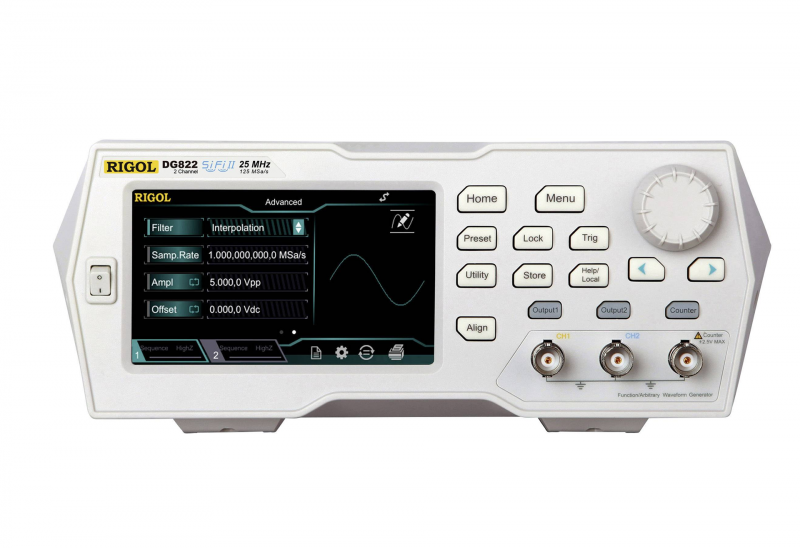

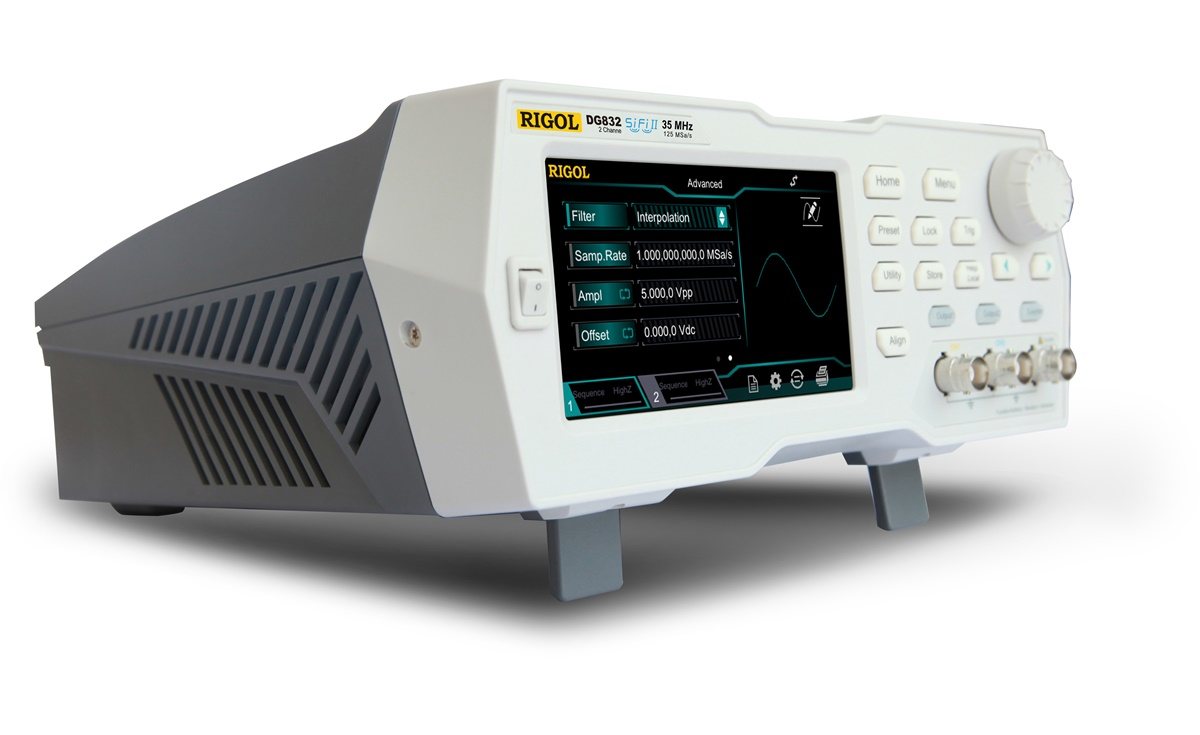

RIGOL DG822 Function/Arbitrary Waveform Generator

RIGOL DG822 is a high quality 2 channel function / arbitrary waveform generator with 25 MHz bandwidth, 125 MSa/s and 2 Mpts memory.

The Rigol DG800 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG800 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.

FEATURES

• Unique SiFiII (Signal Fidelity II) technology
• Two fully functional and independent channels
• Maximum frequency 25MHz
• 125 MSa/s sample rate
• 16-bit vertical resolution
• Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone
• Advanced waveforms: PRBS, RS232, sequence
• 160 built-in arbitrary waveforms
• Up to 8Mpts (optional) arbitrary waveform memory, 2Mpts standard
• Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
• Intuitive arbitrary waveform editing software for PC
• ±1ppm frequency stability
• Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)
• Built-in 7-digit counter up to 240 MHz
• Built-in 8th order harmonics generator
• Waveform summing function
• 4.3" TFT LCD colour touch-screen display (480 x 272), 16M colours

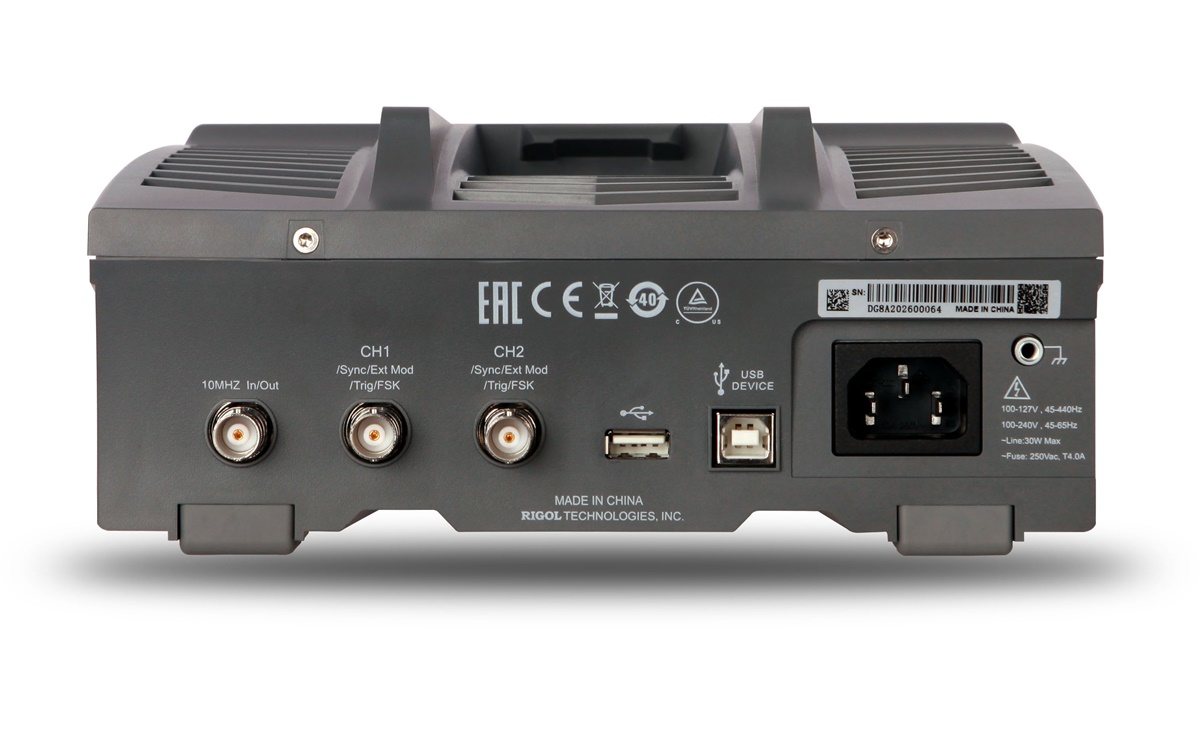

• Connectivity: USB Host & Device, (USB-LAN optional)
