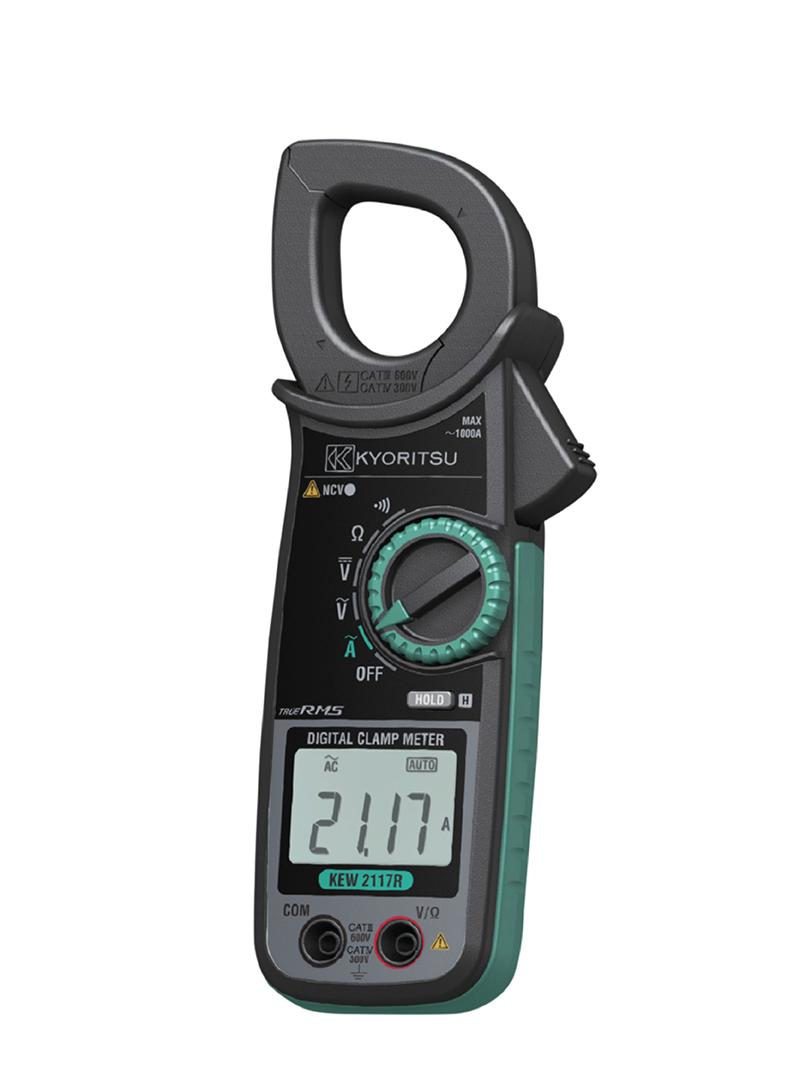

Kyoritsu KEW 2117R True RMS Digital Clamp Meter

• Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.01A resolution
• Accurate reading with True RMS
60/600/1000A auto-ranging
• Long battery life
• Safety Standard
IEC 61010-1 CAT IV 300V / CAT III 600V

AC A60.00/600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 - 65Hz]
±2.0%rdg±5dgt [40 - 1kHz]AC V60.00/600.0V (Auto-ranging)
±1.0%rdg±2dgt [45 - 65Hz] (600V)
±1.5%rdg±4dgt [40 - 1kHz] (60/600V)DC V60.00/600.0V (Auto-ranging)
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)Ω600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging)
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)Continuity buzzer600Ω(Buzzer sounds below 90Ω)Conductor sizeØ33mm max.Applicable standardsIEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)Power sourceR03/LR03 (AAA) (1.5V) × 2Continuous measuring timeApprox.170 hours
(When R3 is used)(NCV_LED:off)
(Auto power save : approx. 10 minutes)Dimensions204(L) × 81(W) × 36(D)mmWeight220g Approx. (including batteries)Included Accessories7066A (Test leads)
9079 (Carrying case)
R03 (AAA) × 2, Instruction Manual
