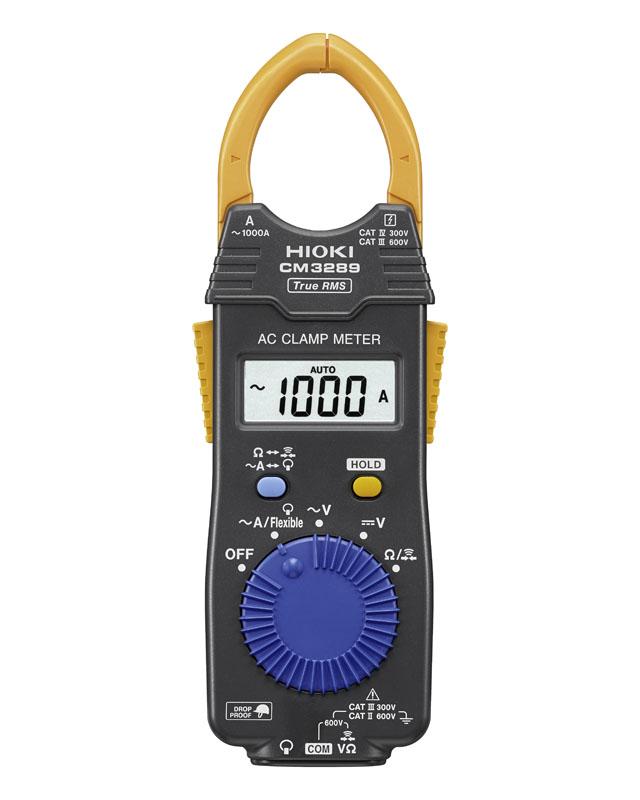

HIOKI CM3289 Clamp Meter True RMS, AC Current, DC/AC Voltage

The clamp meter is designed to be small. Slim and compact Supports AC Current True RMS measurements up to 1000 A. Passed the test of Drop proof. Resistant to 1 meter. Designed and developed for use in a wide range of weather conditions At temperatures from -25 to 65˚C

Features

• True RMS clamp meter, AC Current, DC / AC Voltage,
• AC Current measurement range: 42.00 to 1000 A, 3 ranges
• Other measurement functions: AC / DC Voltage, Resistance, Continuity
• The clamp is small. Convenient to use in limited areas,
• CAT IV 300 V standard, CAT III 600 V
• Hioki brand, Japan

Specifications

• product code : CM3289
• Size : 57 x 181 x 16 mm
• producer : Hioki
• Measurement Range
• AC Current: 42.00 to 1000 A
• DC Voltage: 420.0 mV to 600 V
• AC Voltage: 4.200 to 600 V
• Resistance: 420.0 Ω to 42.00 MΩ
• Crest factor: 2.5 or less (1.5 or less at 4200 count)
• Frequency characteristics (AC Current): 40 Hz to 1 kHz
• Frequency characteristics: 45 Hz to 500 Hz
• function
• Continuity : Buzzer sounds at 50 Ω ± 40 Ω or less
• Data hold
• Auto power save
• Drop-proof from height of 1 meter
• Power Supply : Battery CR2032
• Accuracy
• AC Current : ± 1.5% rdg. ± 5 dgt.
• AC Voltage : ± 1.0% rdg. ± 3 dgt.
• DC Voltage : ± 1.0% rdg. ± 3 dgt.
• Resistance : ± 2% rdg. ± 4 dgt.

Basic specifications
