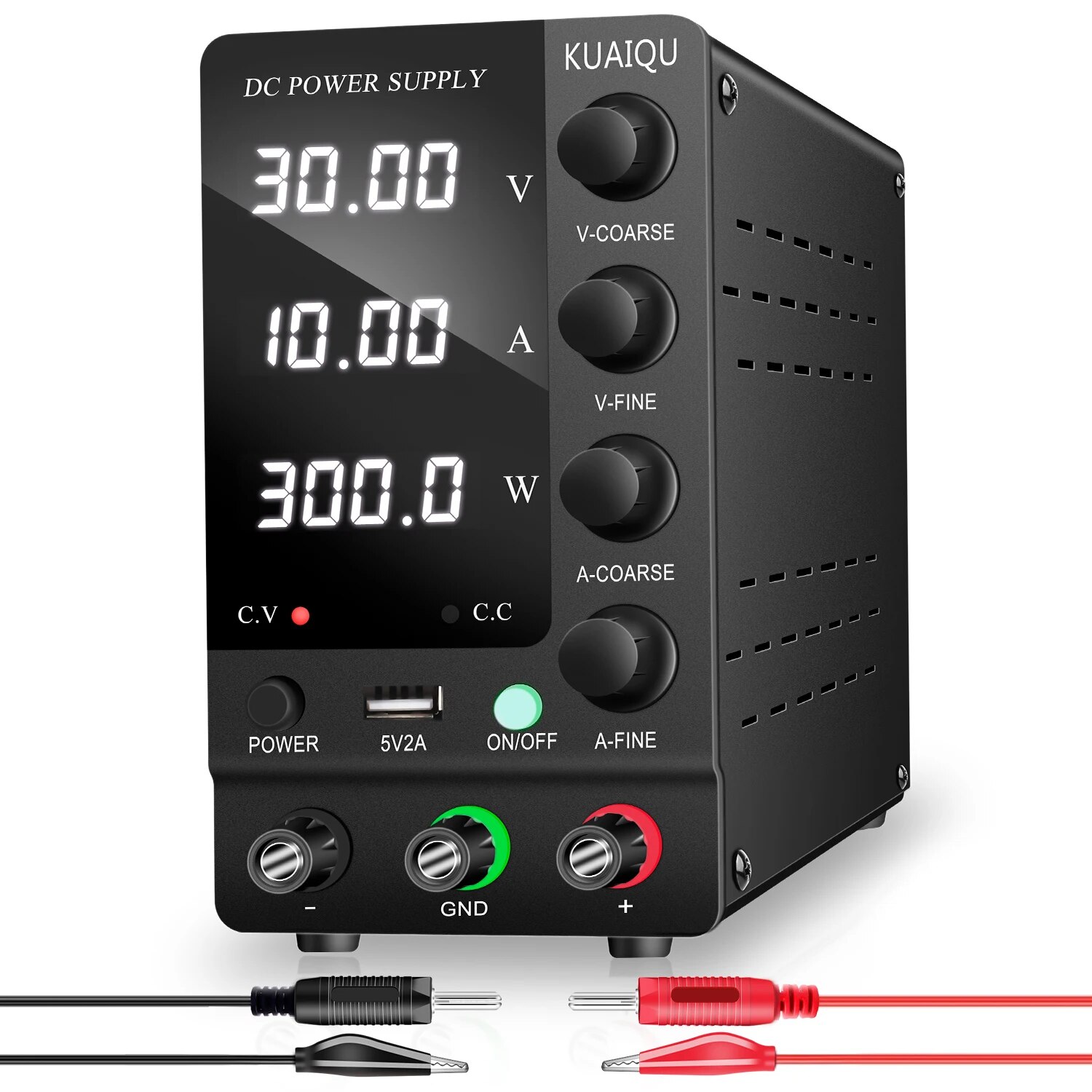

KUAIQU SPS-C3010 DC Power Supply


  Main Features:

  ● Have complete operating protection function.

  ● Highly efficient, low ripple, small volume, light weight.

  ● Double display voltage, current, and high precision.

  ● Voltage stabilization, current limiting, simple operation.

  ● Dual voltage input and convenient choice.

  ● Temperature control fan heat dissipation, low noise.

  ● Double potentiometer more precise adjustment.

  ● Fine adjustment of current and voltage.


  Specification

Input voltage:AC 110V/220V  50/60Hz.

Output voltage:0 ~ 30V.

Output current:0 ~ 10A.

Voltage resolution: 100mV.

Current resolution: 10mA.

Output Voltage ranges from 0 to rating voltage with continuous adjustment.

Voltage regulation : Line regulation<5mV. Load regulation<5mV.

Recovery time<500us(50% Load change, minimum load 0.5A).

Ripple & Noise<5m Vrms, 100m Vp-p.

Temperature coefficient<100p pm/C.

Output current ranges from 0 to rating current with continuous adjustment Current regulation line regulation<3mA. load regulation<3mA.

Indicator Meter

Voltage display precision: +-(0.5% of rdg + 3 digits).

Current display precision: +-(0.5% of rdg + 3 digits).

Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.

Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

  Package Contents

1 * DC Power Supply

1 * Power Cable

1 * Output Line

1 * Instruction Book
