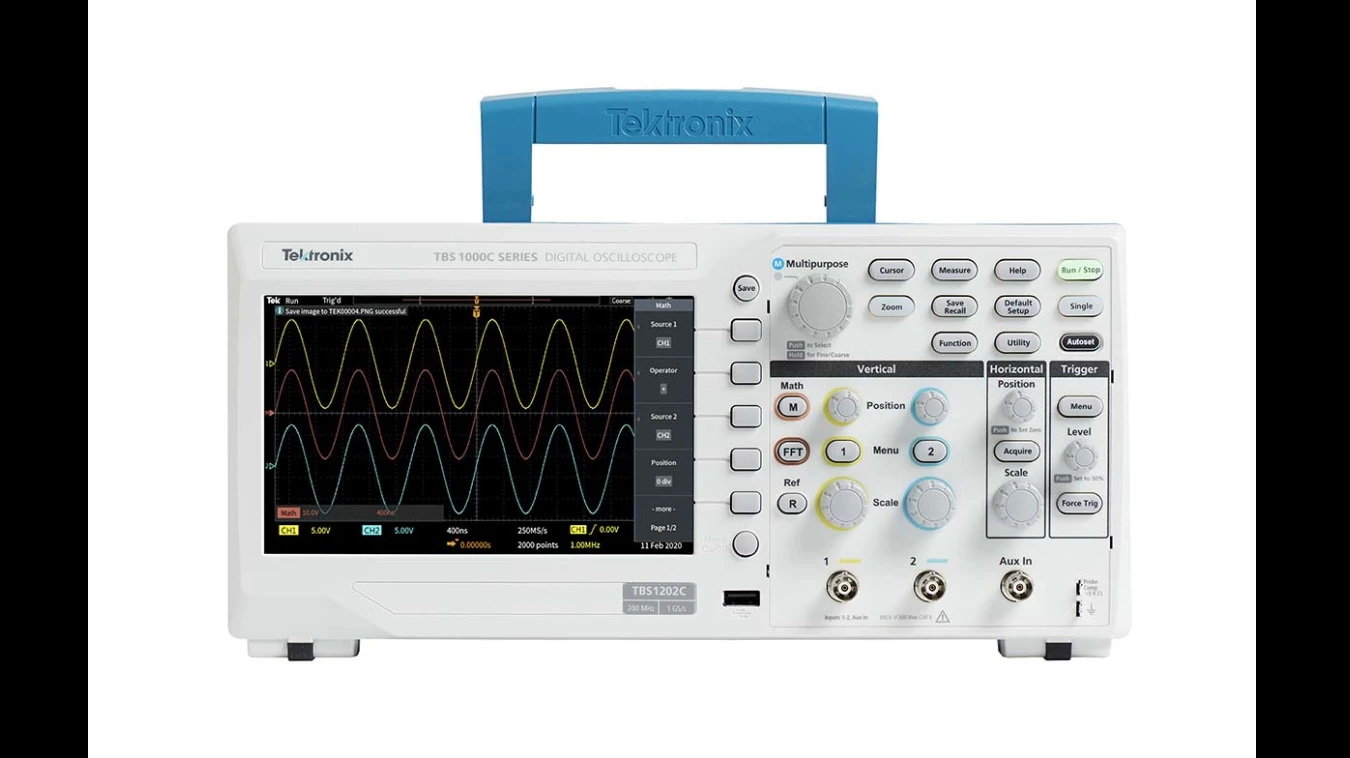

Tektronix TBS1202C Digital Oscilloscope 200MHz

Product Highlights

The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five year warranty. The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpAnywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.

Key performance specifications

• 200 MHz, bandwidth models
• 2-channel models
• 1 GS/s sample rate on all channels
• 20k point record length on all channels
• Advanced triggers include pulse, runt, and line triggers
• Five-year warranty

Key features

• 7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
• 32 automated measurements
• Dual window FFT with simultaneous time and frequency domain views
• Trigger frequency counter
• Pan and Zoom capability
• Multi-language user interface with support for 10 languages in the user interface and front panel overlay
• Small footprint and light weight
• Fanless design contributes to low noise operation

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage.
• USB 2.0 device port on rear panel to connect to a PC and remotely control the instrument.

Education

• HelpAnywhere provides helpful on-screen tips for users
• Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals
• Integrated courseware feature provides lab exercise guidance on the display
• Compatible with TekSmartLab® lab management software for education
• Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students
