คุณลักษณะ
สามารถวัดความต้านทานสายดินจาก 0.05 ถึง 1200 Ω โดยไม่ต้องใช้หลักดินเสริม (ระบบการต่อลงดินแบบรวม) True RMS ฟังก์ชัน True RMS สามารถอ่านค่ากระแส AC ที่ผิดเพี้ยนจากคลื่นรูปซายน์ได้ตั้งแต่ 1mA ถึง 30.0A
- ฟังก์ชันตรวจสอบสัญญาณรบกวน (Noise Check Function) ฟังก์ชันนี้ตรวจหากระแสไฟที่มีผลกระทบต่อการวัดความต้านทานดิน แล้วแสดงผลเป็นข้อความ "NOISE" ในหน้าจอ LCD
- ฟังก์ชันหน่วยความจำสามารถจัดเก็บและแสดงข้อมูลการวัดได้ถึง 100 ข้อมูล
- มีฟังก์ชันค้างตัวเลข (Data Hold) / เสียงสัญญาณ (Buzzer) / แสงไฟพื้นหลัง (backlight)
- ออกแบบตามมาตรฐานความปลอดภัย IEC 61010-1 : CAT.IV 300V Pollution degree2
คุณสมบัติ

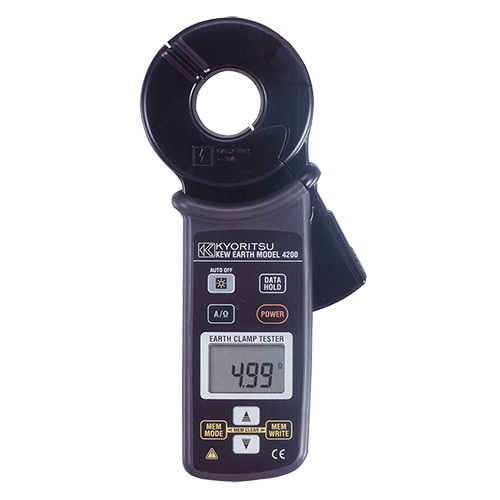

เครื่องวัดค่าความต้านทานดินแบบแคลมป์ |
รุ่น 4200 |
Earth resistance function |
Constant voltage injection, Current detection, (Frequency : Approx.2400Hz) Dual Integration |
AC current function |
Successive Approximation |
Over-range indication |
"Oil" is displayed when input exceeds the upper limit of a measuring range |
เวลาตอบสนอง |
Approx. 1 t/s |
แหล่งจ่ายไฟ |
DC6V : R6P (size AA manganese battery) x 4 pcs LR6 (size AA alkaline battery) x 4 pcs |
กระแสสิ้นเปลือง |
Approx. 50mA (max. 100mA) |
ช่วงเวลาการวัด |
Approx. 12 hours (when R6P is used) |
ขนาดความกว้างของตัวนำ |
Approx. 32mm max. |
ขนาดตัวเครื่อง |
246 x 120 x 54 (L x W x D) mm |
น้ำหนัก |
Approx. 780g (including batteries) |
อุปกรณ์ที่แถมมาพร้อมเครื่อง |
Battery R6P, Instruction manual, 8304 (Resistance for operation check), 9128 (Hard case) |
ค่าความละเอียด |
รุ่น 4200 |
Range |
Resolution |
Measuring |
Accuracy |
Earth resistance Autorange |
20Ω |
0.01Ω |
0.00 ~ 20.99Ω |
±1.5% ±0.05Ω |
200Ω |
0.1Ω |
16.99.9Ω |
±2% ±0.05Ω |
200Ω |
0.1Ω |
100.00 ~ 209.9Ω |
±3% ±2Ω |
1200Ω |
1Ω |
160 ~ 399Ω |
±5% ±5Ω |
1200Ω |
1Ω |
400 ~ 599Ω |
±10% ±10Ω |
AC current (50Hz /60Hz) Auto range |
100mA |
0.1mA |
0.0 ~ 104.9mA |
±2% ±0.7mA |
1000mA |
0.1mA |
80 ~ 1049mA |
±2% |
10A |
0.01A |
0.80 ~ 10.49A |
±2% |
30A |
0.1A |
8.0 ~ 31.5A |
±2% |
