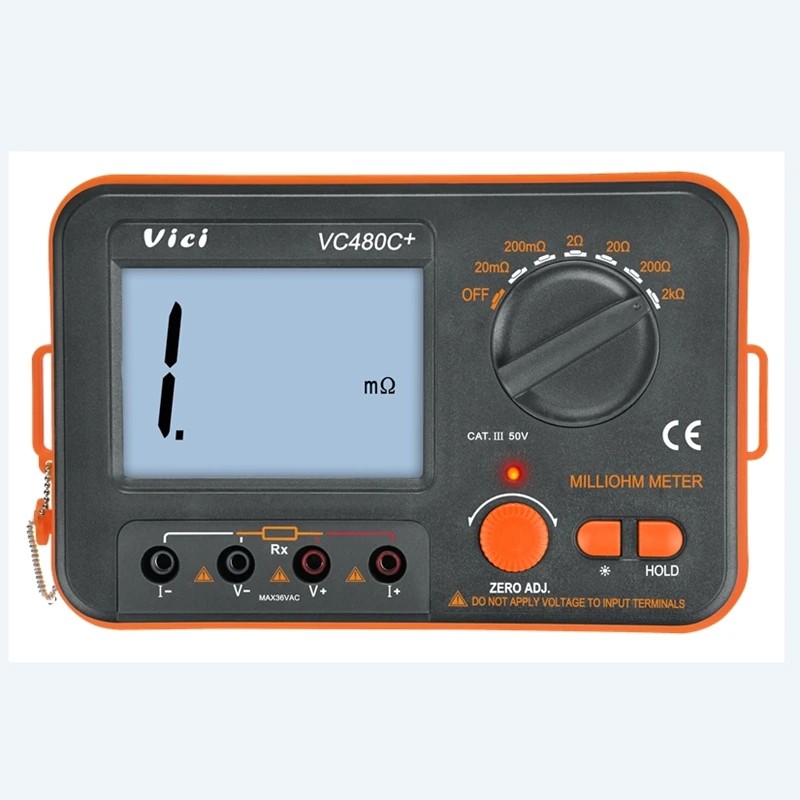

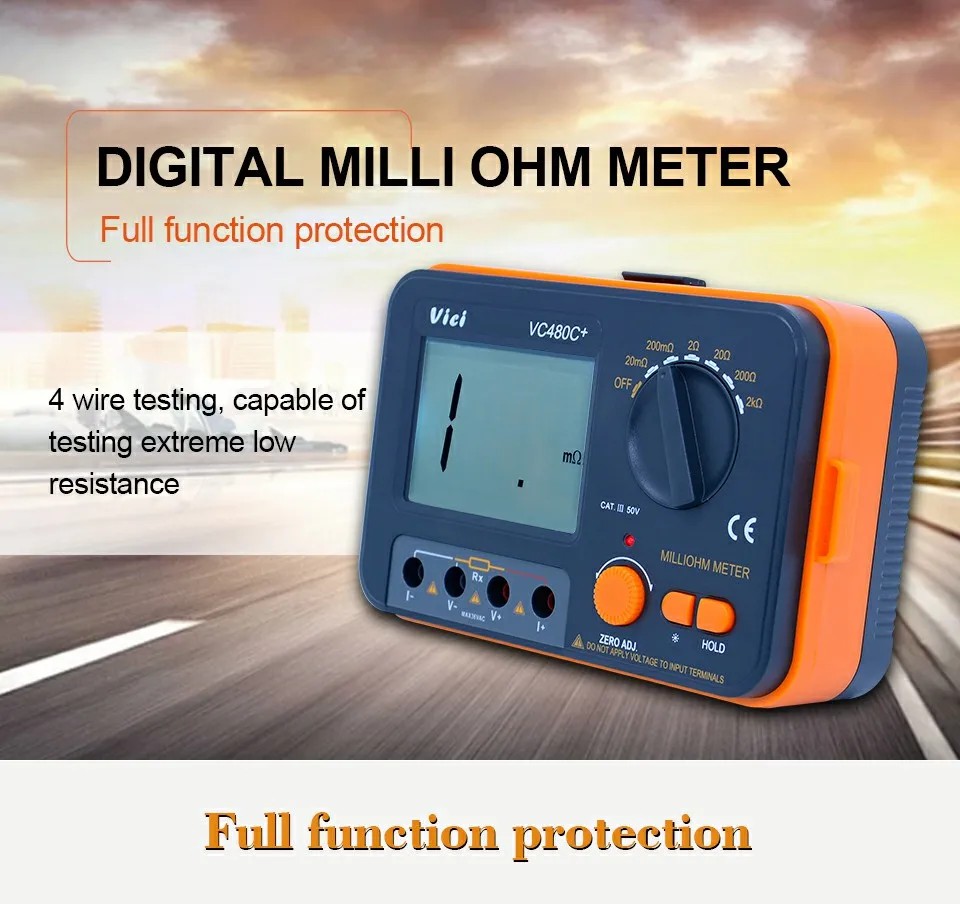

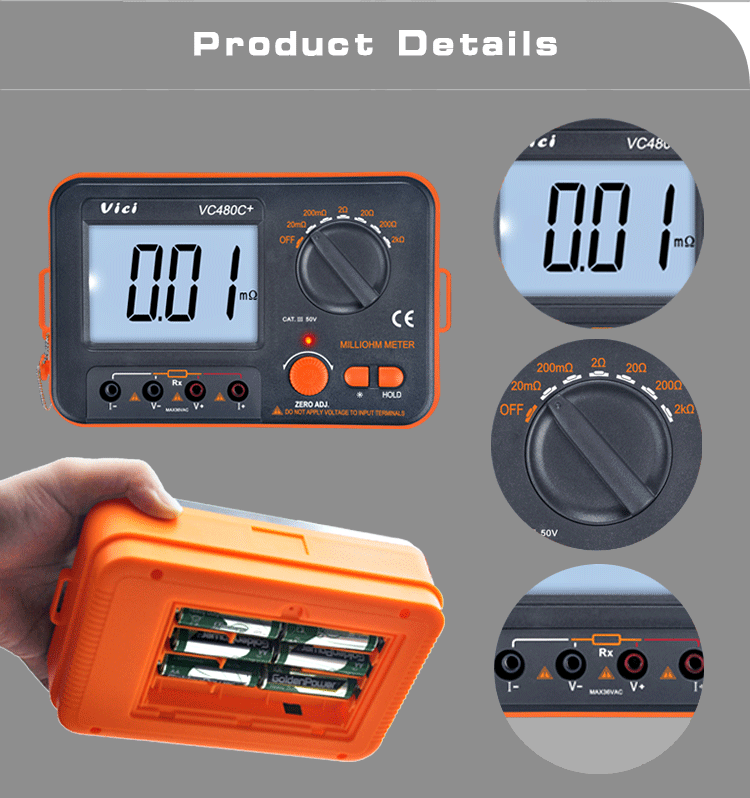

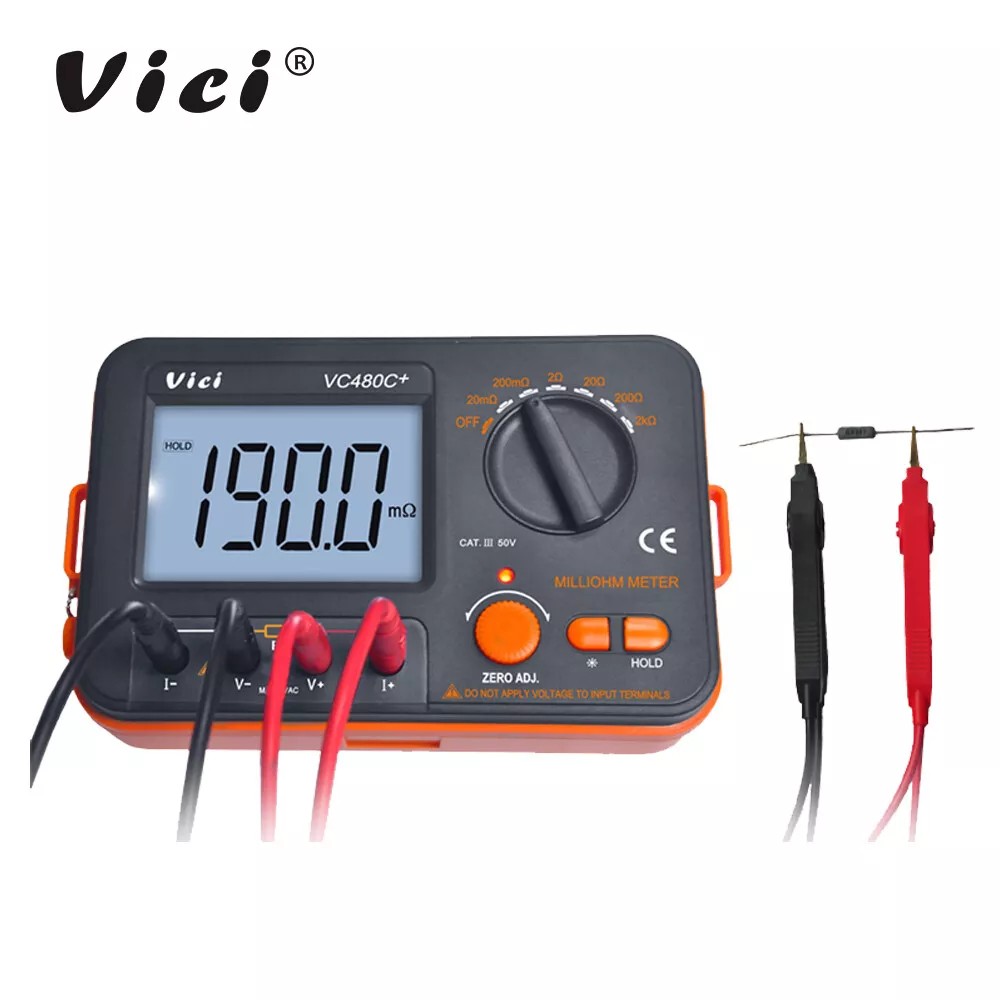

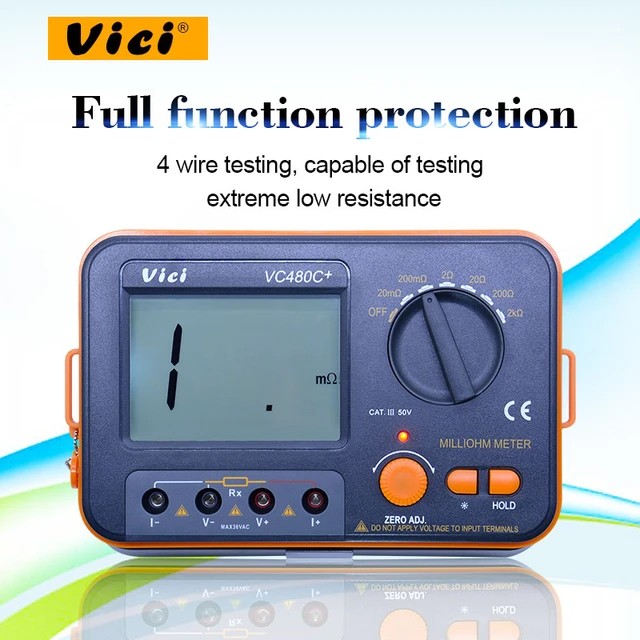

VICI VC480C+ Digital Milli-Ohm Meter

Vici VC480C+ LCD Digital Milli-ohm Meter Resistance Tester 4 Wire Micro Ohm Meter

Features:
1. Large LCD display for easy reading.
2. 4 wire testing, capable of testing extreme low resistance.
3. Accurate measurement of conductor, electric heating elements and solder point; It is used widely in building lightning protection network, equalizing ring of glass curtain walls, and communication antenna.
4. High measurement range of 0.01mΩ to 2kΩ at 6 ranges.
5. HOLD key for data hold.
6. Backlit LCD for easy reading under dark light.
7. Strong anti-magnetic and anti-jamming functions.
8. Full function protection.

Specifications:
Range: 20mΩ/200mΩ/2Ω/20Ω/200Ω/2kΩ ±(0.5%+3),20mΩ ±(1.5%+3).
Low battery indication:Approx.less than 7.5V.
Data Hold:Yes
Function protection:Yes
Sampling rate: 3 times/sec.
Operation mode: Manual range
Max.display: 1999
Power source: 6x1.5V AA battery or external DC 9V power source(not included)

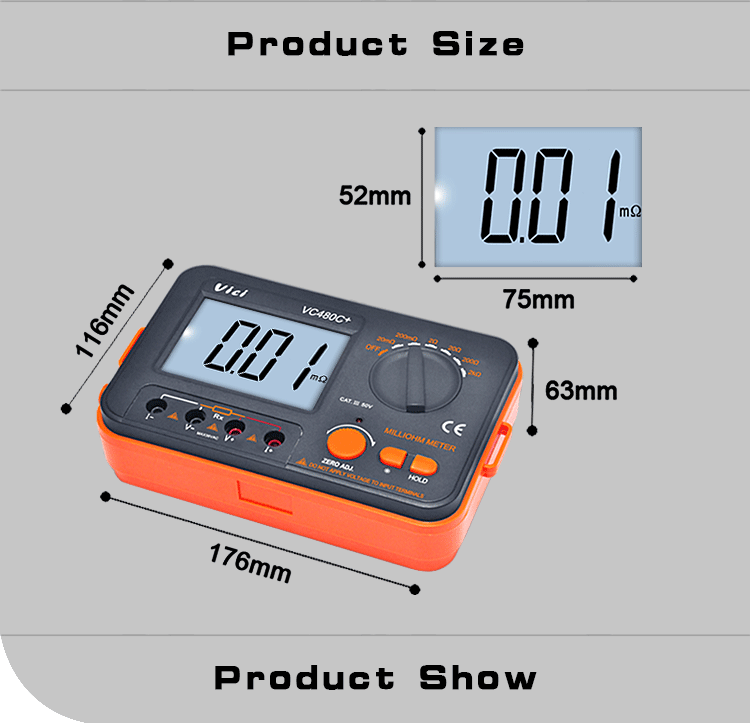

LCD size: 75×52mm
Weight: 580g

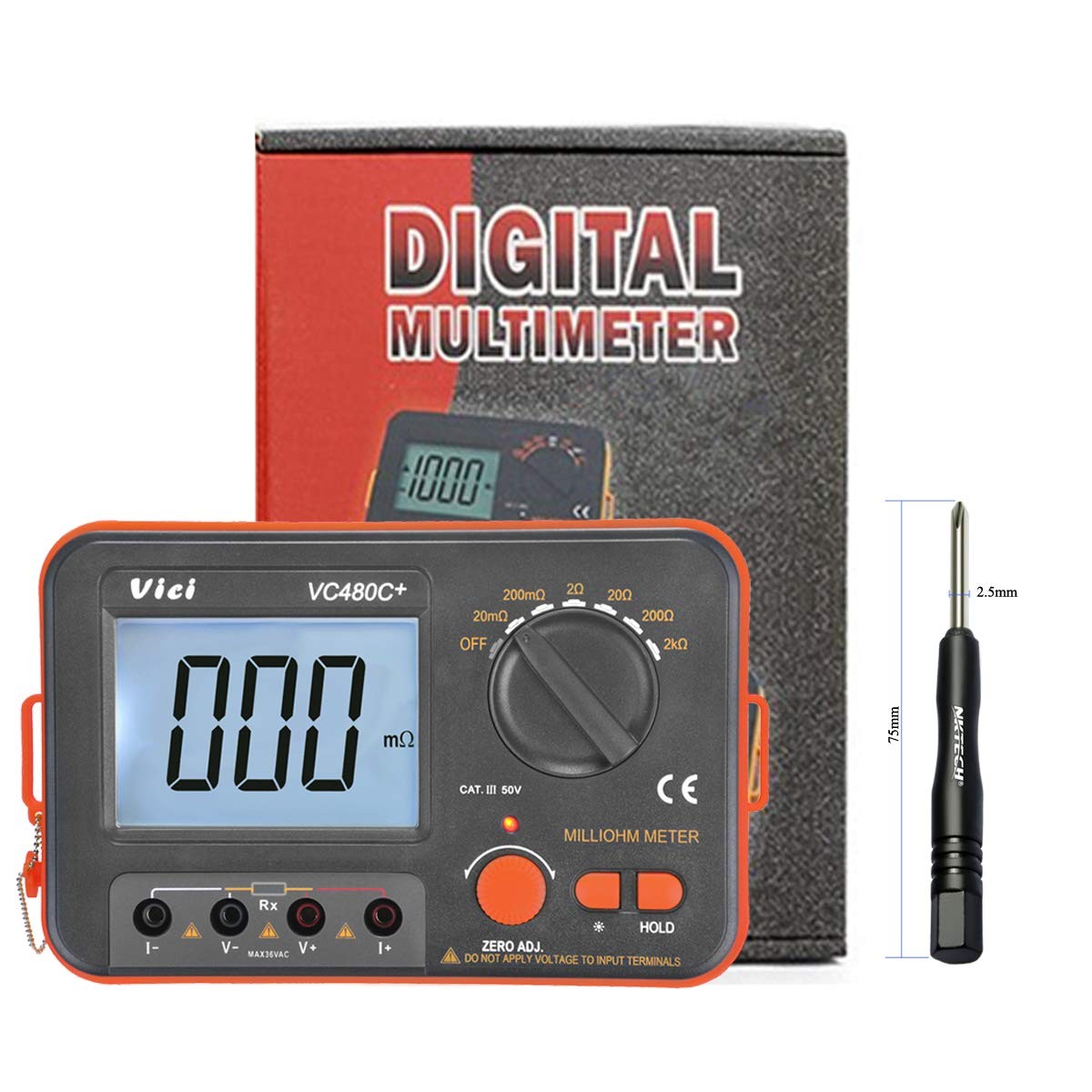

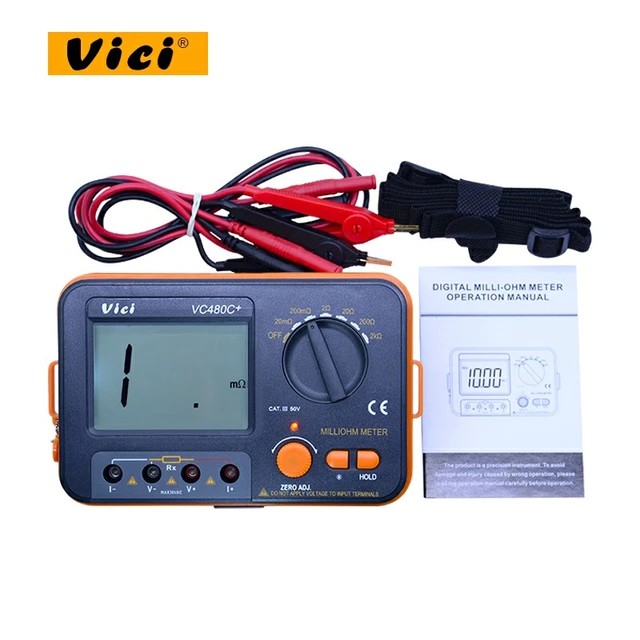

Package List:
1 x VC480C+ Digital Milli-ohm Meter
1 x test lead
1 x English Manual
