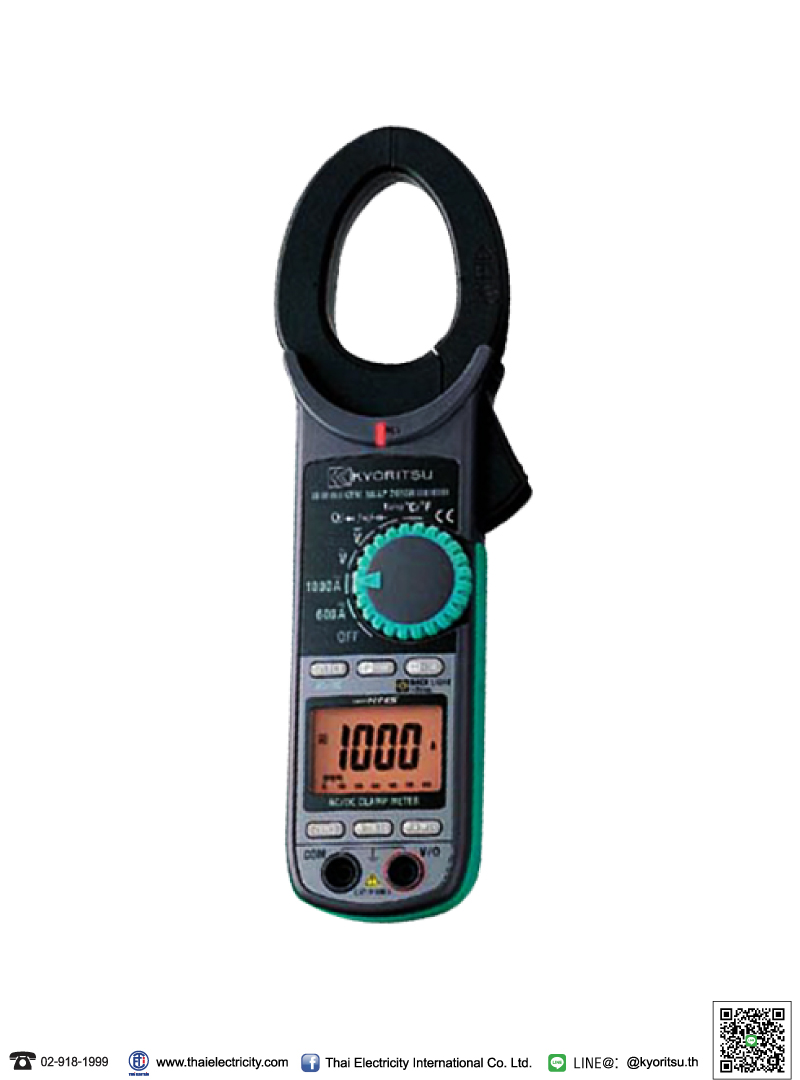

KYORITSU KEW 2055 AC/DC Digital Clamp Meter

• Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
• CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
• Very useful for power distribution companies, power utilities and maintenance fields.

                          รายละเอียดสินค้า

AC A 0 - 600.0/1000A ±1.5%rdg±5dgt (50/60Hz) ±3.0%rdg±5dgt (40 - 400Hz) DC A 0 - 600.0/1000A ±1.5%rdg±5dgt AC V 6/60/600V Auto Ranging ±1.3%rdg±4dgt (50/60Hz) ±3.0%rdg±5dgt (40 - 400Hz) DC V 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M) Continuity buzzer Buzzer Sounds at 100Ω Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9% Conductor size Ø40mm Safety Standard IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 Power source R03 (1.5V) (AAA) × 2 Dimensions 254(L) × 82(W) × 36(D)mm Weight 310g Included Accessories 7066A (Test leads) 9094 (Carrying case) Instruction Manual
