Specifications of UT89X Series Digital Multimeters
รหัสสินค้า | SKU-00965 |
หมวดหมู่ | Digital Multimeter |
ราคา | 850.00 บาท |
น้ำหนัก | 345 กรัม |
ยี่ห้อ | UNI-T |
รุ่น | UT89X |
ขนาด | 189 x 89 x 53 mm. |
สถานะสินค้า | พร้อมส่ง |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 13 ธ.ค. 2567 |
อัพเดทล่าสุด | 21 เม.ย. 2568 |
คงเหลือ | 10 ชิ้น |
จำนวน | ชิ้น |

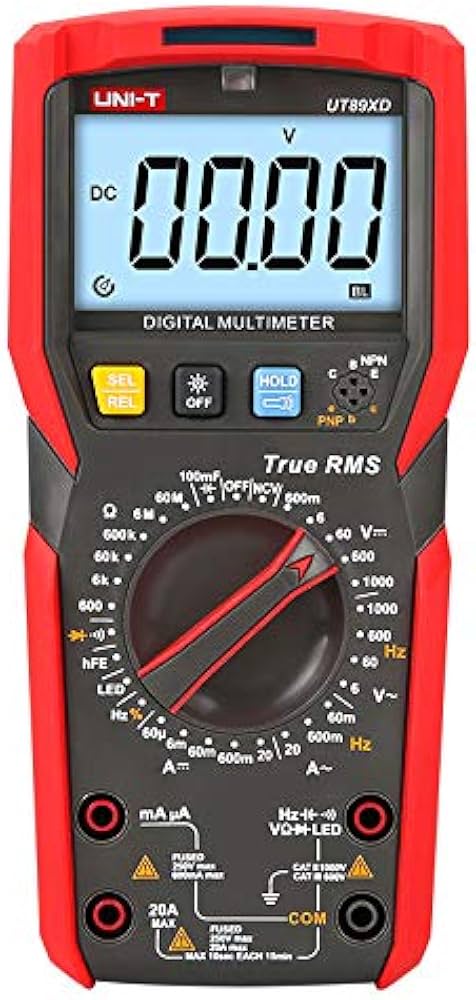

UT89X/UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
Models in UT89X Series: UT89X, UT89XD, UT89XE
Specifications of UT89X Series Digital Multimeters
Specifications | Range | UT89X | UT89XD | UT89XE |
DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) | ±(0.5%+2) | |
200mV/2V/20V/200V/1000V | ±(0.05%+5) | |||
AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) | ±(0.8%+5) | |
200mV/2V/20V/200V/1000V | ±(0.8%+25) | |||
DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) | ||
60μA/6mA/60mA/600mA/20A | ±(0.8%+8) | |||
2000μA/200mA/20A | ±(0.5%+4) | |||
AC current (A) | 60mA/600mA/20A | ±(1%+12) | ±(1%+12) | |
2000uA/200mA/20A | ±(1.5%+15) | |||
Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) | ±(0.8%+3) | |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.4%+5) | |||
Capacitance (F) | 100mF | ±(2.5%+20) | ±(2.5%+20) | |
200mF | ±(4%+50) | |||
Conductance (ns) | 200nS | ±(1.2%+50) | ||
Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) | ±(0.1%+4) | |
60MHz | ±(0.1%+3) | |||
Duty cycle | 0.1%~99.9% | ±(2%+5) | ±(2%+5) | |
Temperature (℃) | -40℃~1000℃ | ±(2%+4) | ±(1%+10) | |
Temperature (℉) | -40℉~1832℉ | ±(2%+8) | ±(1.5%+10) | |
Live wire test | √ | |||
LED test | 12V | |||
Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV | LED/hFE/NCV | √ |
Transistor Hfe | √ | √ | ||
Dual range NCV test | √ | √ | ||
Flashlight | √ | √ | ||
MAX/MIN | √ | |||
Peak Hold | √ | |||
LPF measurement | √ | |||
General Characteristics | ||||
Power | 1.5V battery (R03) x 4 | |||
Display | 61mm x 36mm | |||
Product net weight | 345g | |||
Product size | 189mm x 89mm x 53mm | |||
Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | |||
Standard individual packing | Gift box | |||
Standard quantity per carton | ||||
Standard carton measurement | ||||
Standard carton gross weight |
