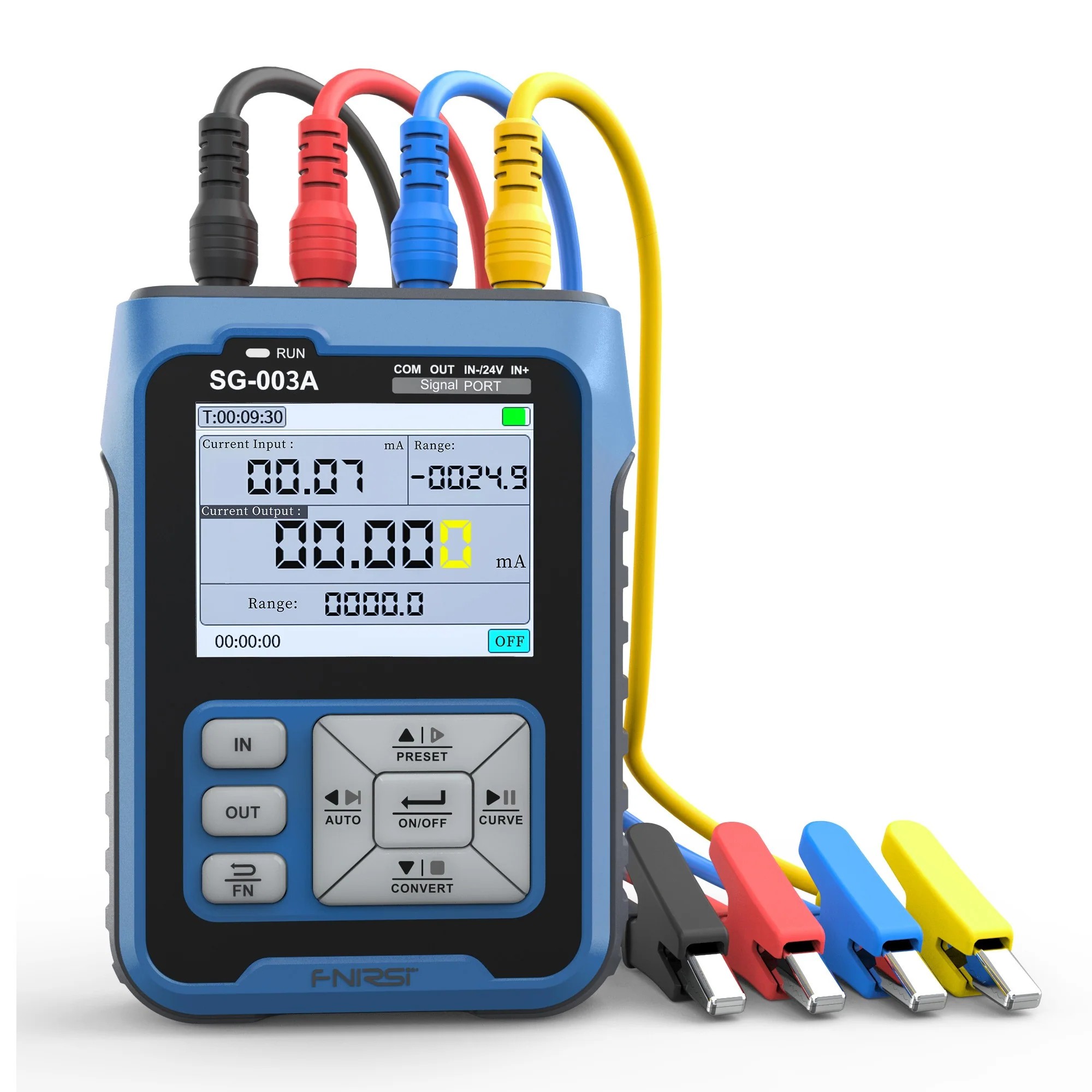

FNIRSI SG-003A Signal Generator

Features

• Expect with the conventional signal input and output functions.
• Signals displayed as physical or engineering values, corresponding linearly.
• Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.
• Four preset groups for quick output adjustment.
• With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.
• The output has a custom function,the upper and lower output limits can be set arbitrarily.
• Displays input and output signal trends with adjustable sampling.
• Automatically adjusts curve within specified range over time.
• Voltage input diagram,current input diagram,the frame rate is 10 frames.
• PWM output can set frequency and duty cycle respectively.
• Real-time curve:Real-time observation of changes in voltage and current
• It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
• The high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W
• FNIRSI SG-003A communicates via RS485 with configuration software or PLC.
• Firmware upgrade via USB emulated U disk.
