รายละเอียดสินค้า

1.ทดสอบแบตเตอรี่12V และ24V ระบบ cranking และระบบชาร์จไฟ

2.รองรับระบบการให้คะแนนแบตเตอรี่ทั้งหมด-CCA, BCI, CA, mca, JIS, DIN, IEC, en, SAE, GB.

3.แสดงผลการทดสอบเพียงวินาทีที่ถูกต้องมากขึ้นกว่าต่ำราคาทดสอบ

4.ทดสอบแบตเตอรี่ในรถยนต์และแบตเตอรี่ที่เก็บข้อมูลเดียว

5.การวิเคราะห์เริ่มต้นอย่างรวดเร็วโดยไม่ต้องปิดใช้งานการจุดระเบิด

6.ใช้งานง่ายและอ่านด้วยจอแสดงผล LCD Backlight ขนาดใหญ่และการทำงานที่ขับเคลื่อนด้วยเมนู

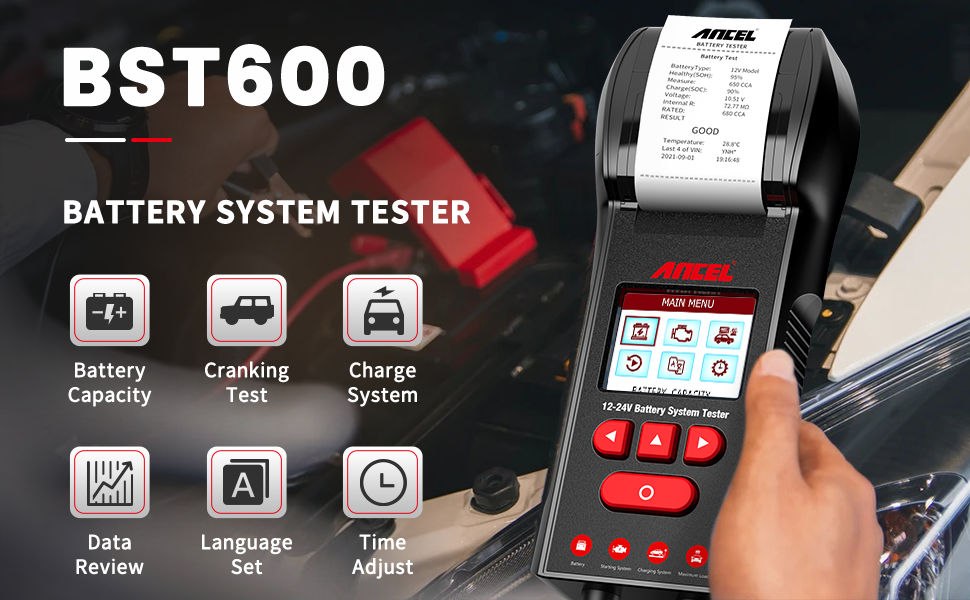

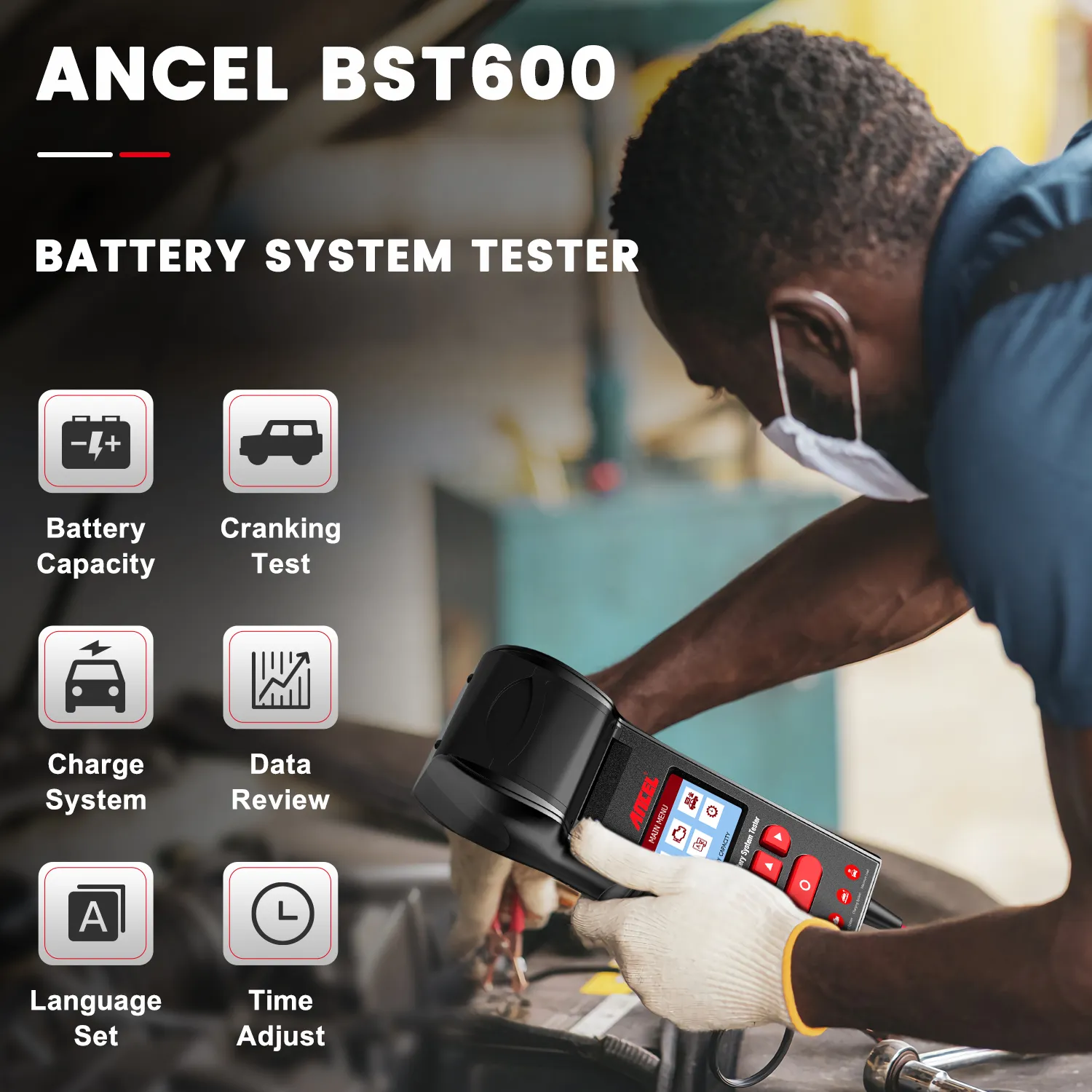

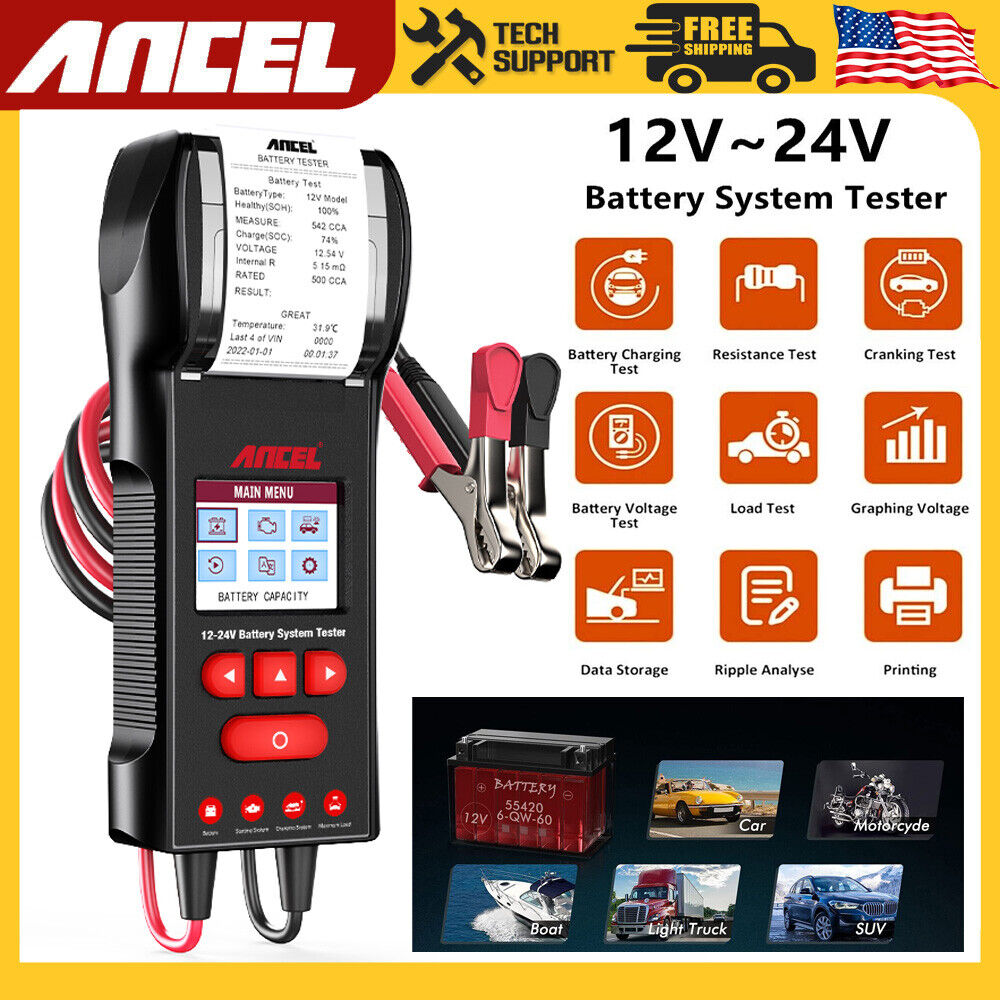

What is the BST600:

1. A battery load tester is a more advanced battery load test tool with print function. It suits to 12V/24V starting & charging system and can quickly test the cold start current, internal resistance, battery life, and accurately display the battery condition.

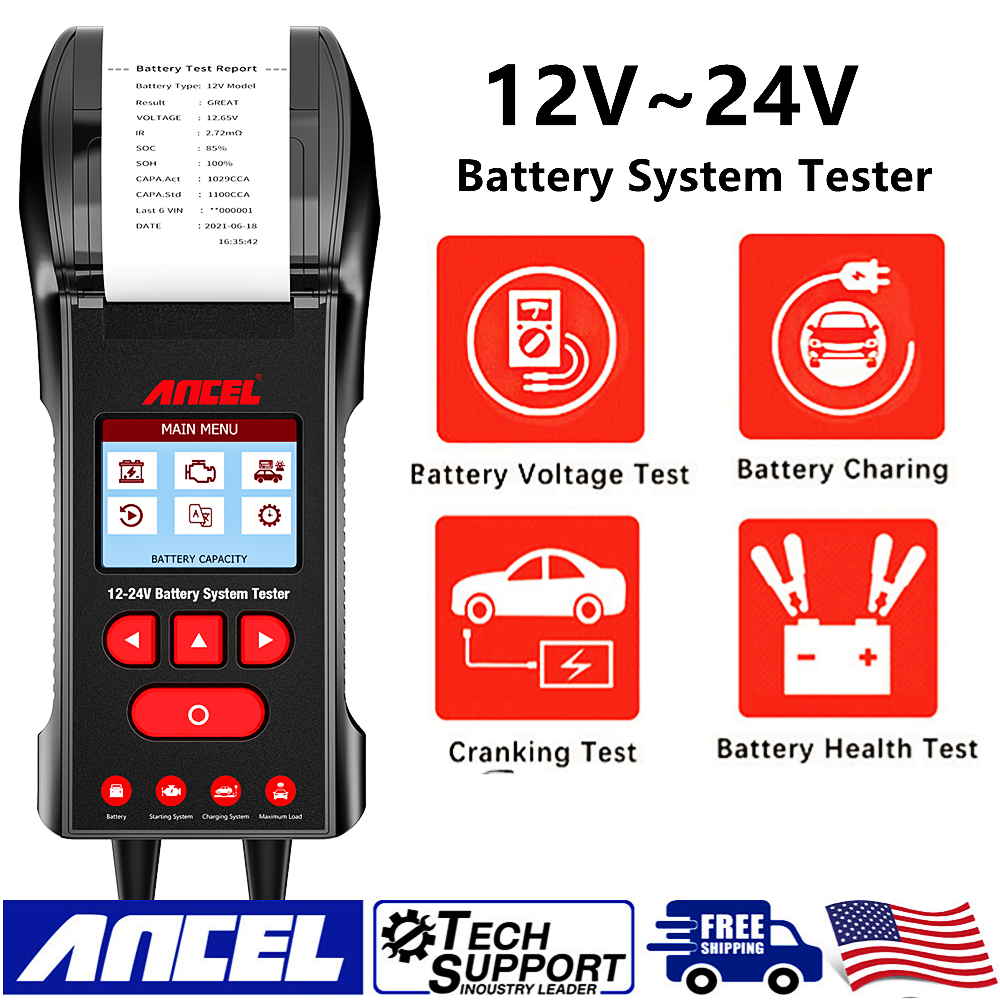

2. The features include Battery test, Cranking test, Charging test, Maximum load test and reverse power connection protection.

what the diffierence between the BST500 and BST600?

1. the 2in1 12v/24v Car battery tester, also with the printer

2. the bst600 new arrivel ,use more friendly than bst500,although they have almost the same function

The Feature List：

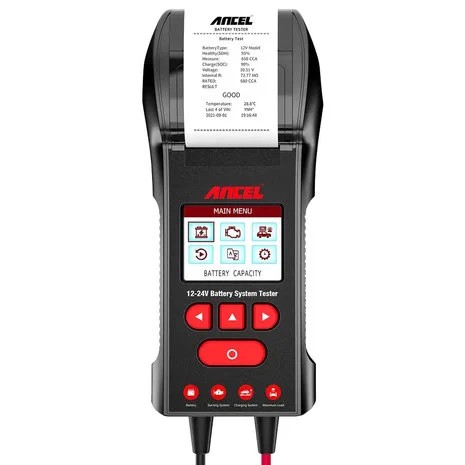

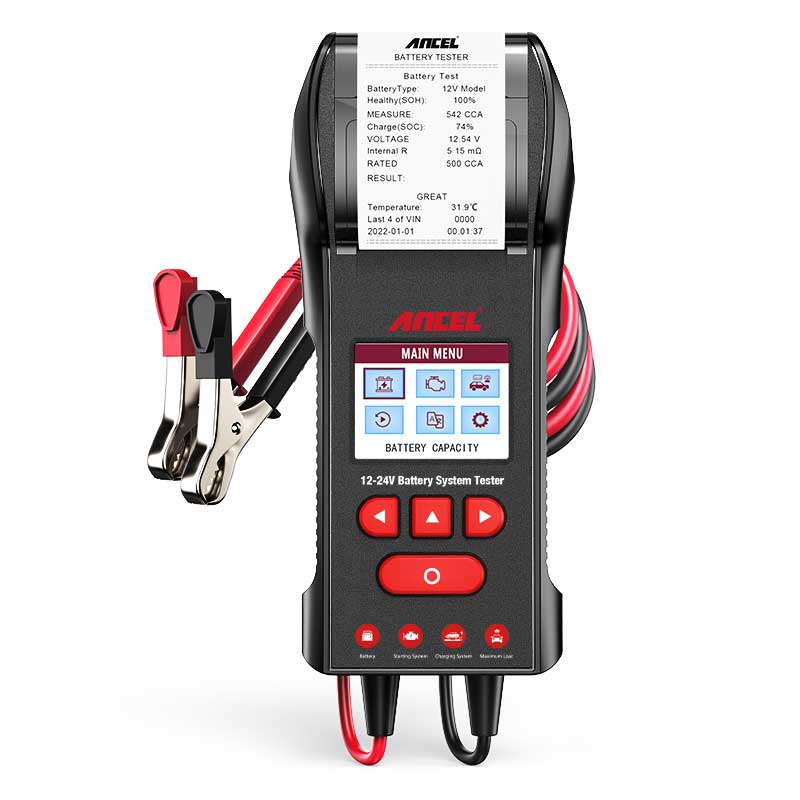

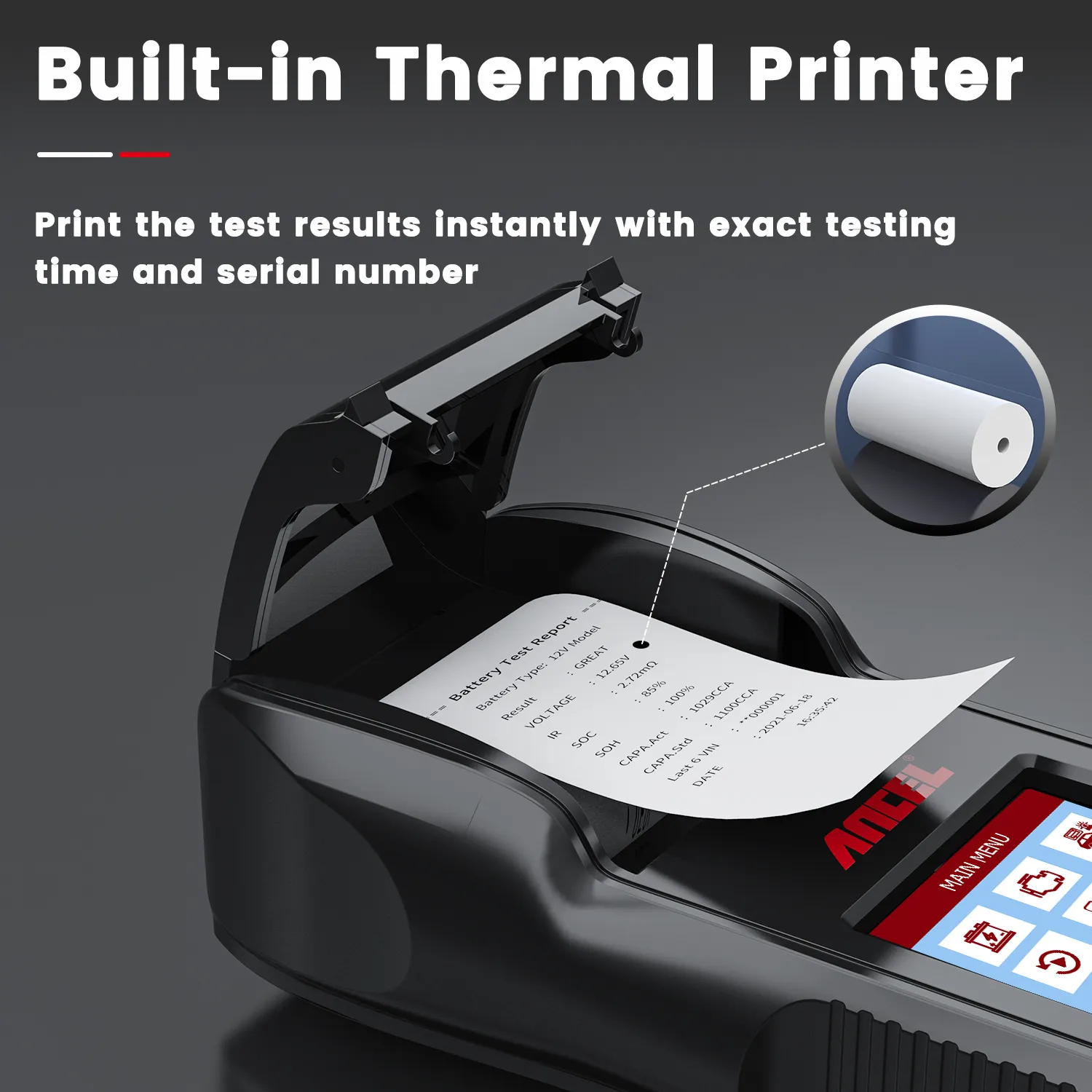

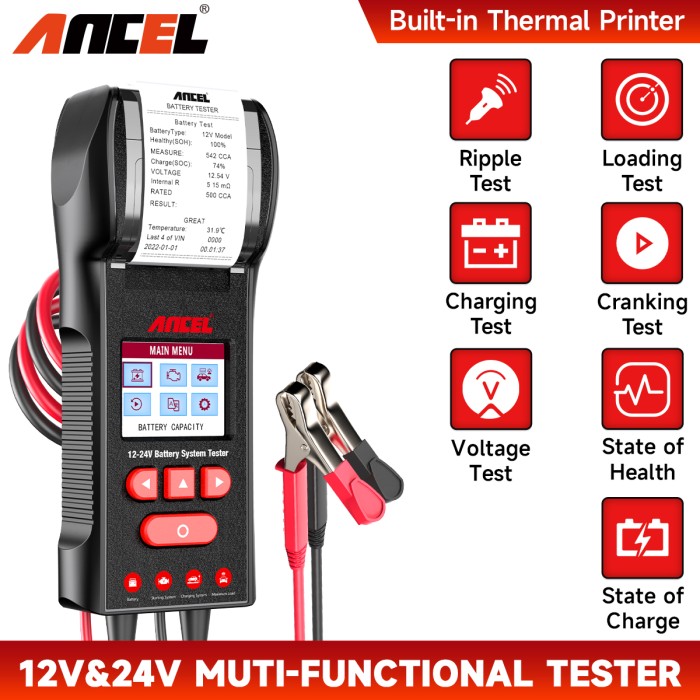

【Car Battery Tester With Built-In Printer】

Its built-in thermal paper printer, so you can conveniently attach a printout to a work order, share it with your customers or build a preventative maintenance program of record keeping, enables you to keep printing records for future reference.

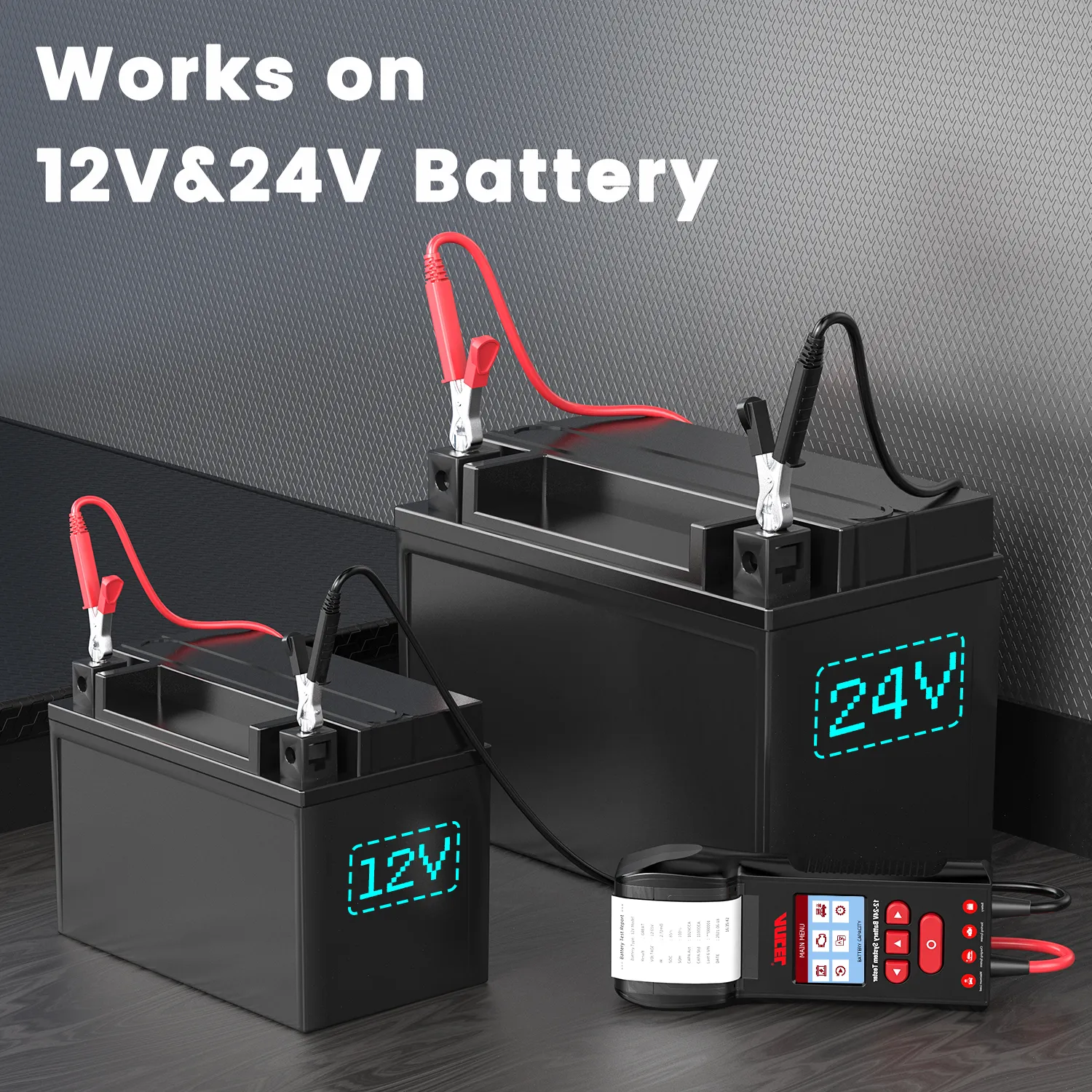

【12V & 24V Battery Load Tester】

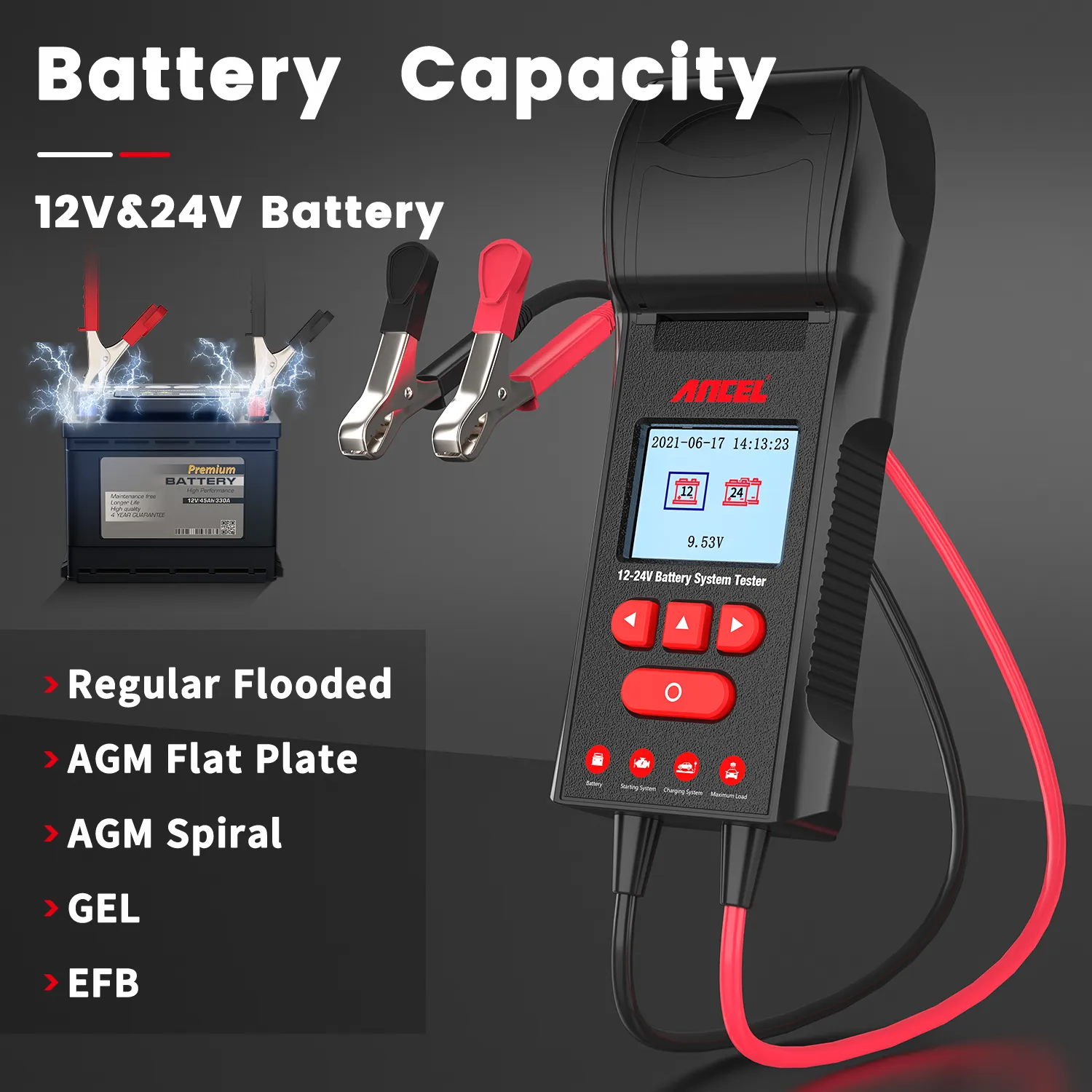

works on 12 volt & 24 volt lead-acid batteries including regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries with the test range (100-2000 CCA). Compatible with cars, motorcycles,

【Multifunctional Use】

trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts.

【Fast & Accurate】

displaying battery parameters in about 2.5 seconds to advise you of a battery’s full/low or charge/replace status.

【Safe & Convenient】

easy hand-holding. backlit display screen for clear reading under any lighting condition, the insulated ABS shell prevents current leaks and is solid enough to withstand damage.

Whether you own your personal mechanic shop or private owner, easy to use and convenient to carry around.In addition

Analyzer System Criteria and Scope:

1.CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )

2.BCI 100-2000 ( international battery Committee standards )

3.CA 100-2000 (0 C when the effective starting current rating)

4.MCA 100-2000 ( ships standard effective starting current rating , 0 C )

5.JIS 26A17 - 245H52 ( Japanese Industrial Standard)

6.Standard DIN 100-1400 ( German Automobile Industry Committee )

7.The IEC 100-1400 ( International Electrotechnical Commission standard )

8.EN 100-2000 ( European Automobile Manufacturers Association standards )

9.SAE 100-2000 ( U.S. Engineers Standard)

10.GB 100-1400 ( Chinese National Standard

The Activation Load Test：

Start the engine to make the tester record the lowest voltage in this process automatically.

1. For the 12V system, the standard voltage is 9.6V;

2. for 24V system, the standard voltage is 16V.

If the lowest voltage is higher than the 9.6V (for the 24V system, the lowest voltage is over 16V), the system is good.

If the lowest voltage is lower than the standard voltage, the system is not good.

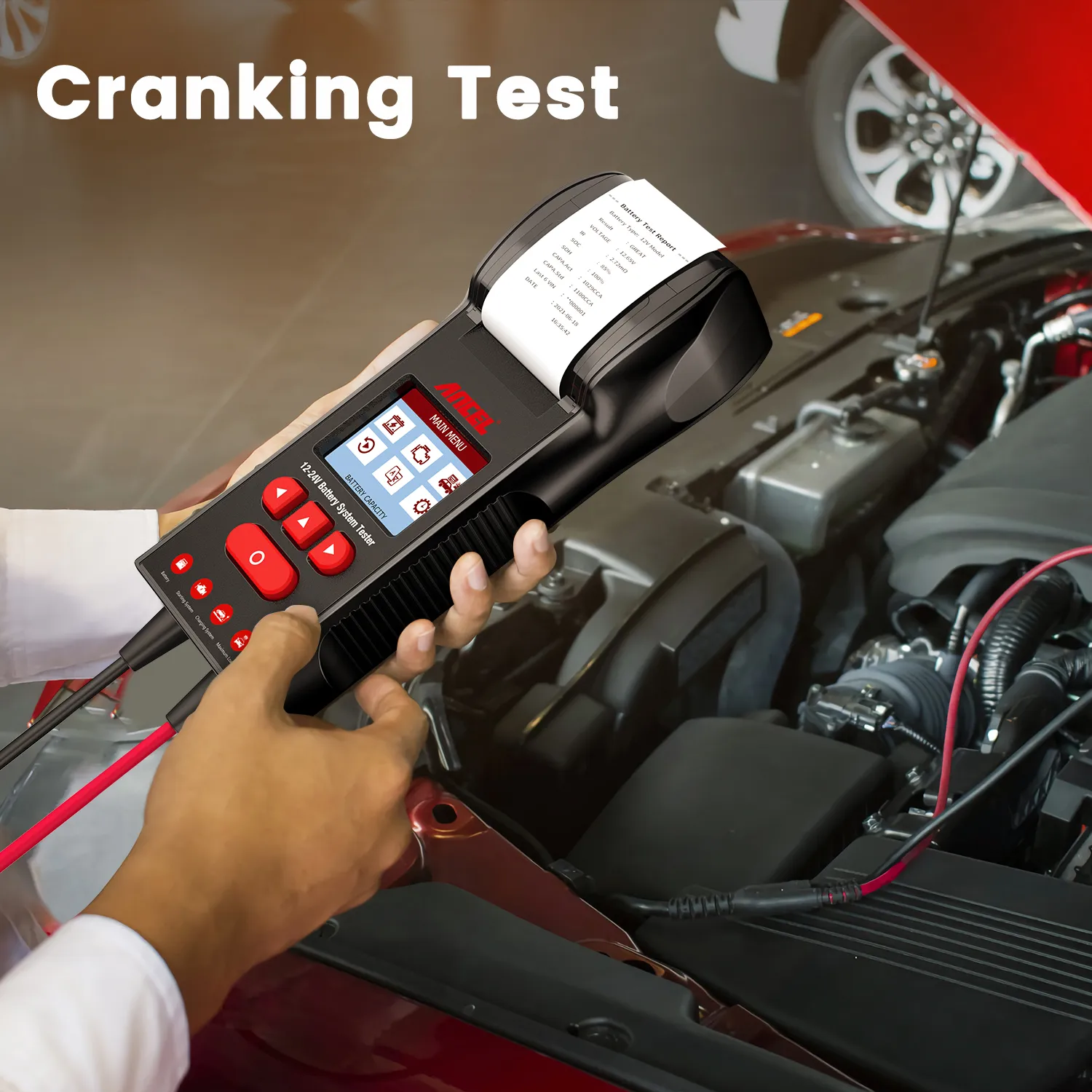

Cranking System Test：

1. For the 12V system, the standard voltage is 12.8V

2. for the 24V system, the standard voltage is 25.6V.

If the lowest voltage is higher than the 12.8V (for the 24V system, the lowest voltage is over 25.6V), the system runs normally.

If the lowest voltage is lower than 12.8V (for the 24V system, the lowest voltage is under 25.6V), please check if the engine belt is damaged and the wires are short-circuited.

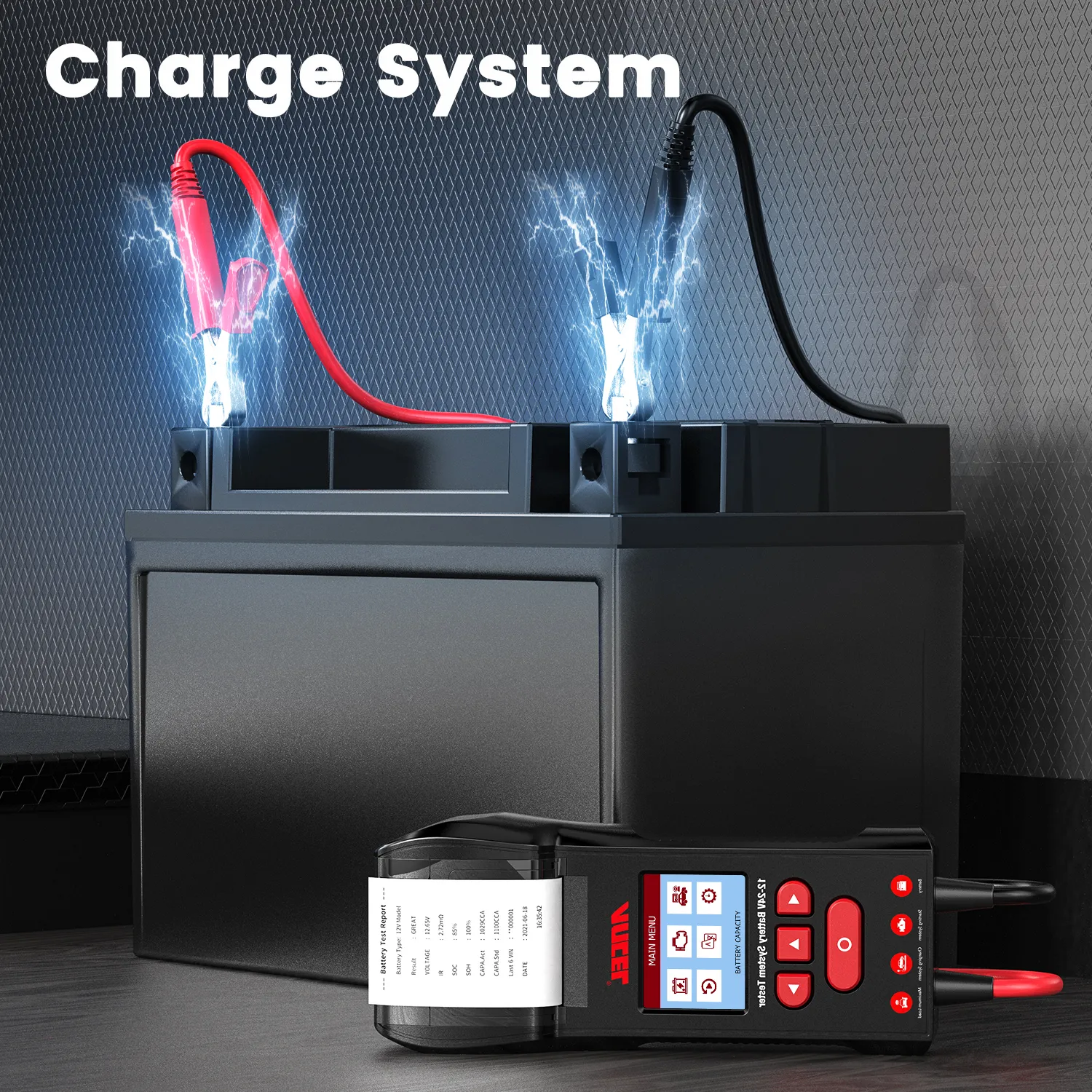

Charging System Test：

1. For the 12V system, the standard maximum voltage is 15V, the standard minimum voltage is 13.3V;

2. for the 24V system, the standard maximum voltage is 30V, the standard minimum voltage is 26.6V.

If the current voltage is higher than 15V or 30V, please check the voltage regulator.

If the current voltage is lower than 13.3V or 26.6V, please check the connections, wires, and engine
